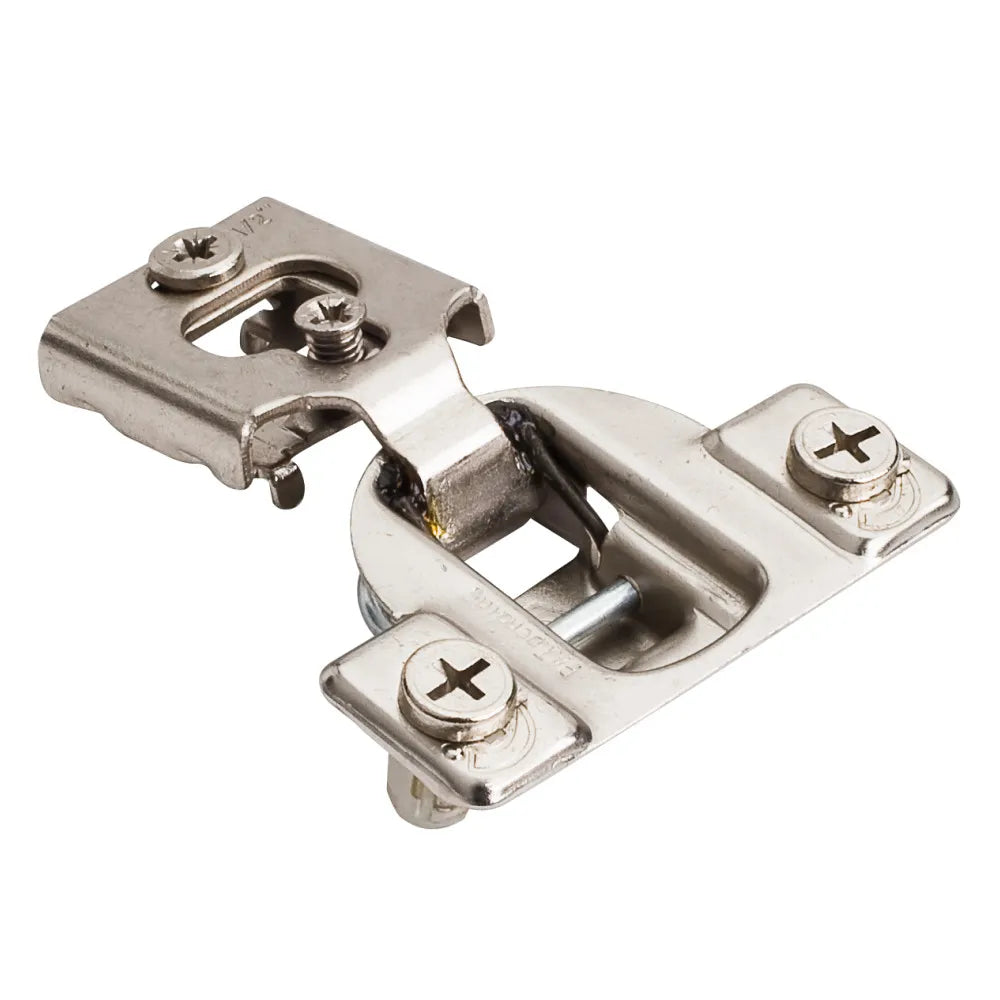

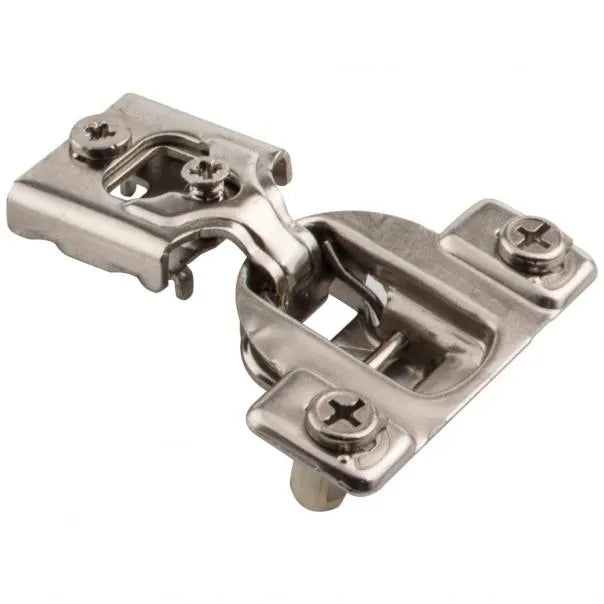

HR MAX™ 105° 1/2" Economical Standard Duty Self-close Compact Hinge with Easy Fix Dowels
HR MAX™ 105° 1/2" Economical Standard Duty Self-close Compact Hinge with Easy Fix Dowels
Regular price
$1.99 USD
Regular price
Sale price
$1.99 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-
Market proven economical standard duty compact hinge
-
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
-
6-way adjustability
-
Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
| Item Number | 3390-3-000 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 12.5 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #7 x 5/8" pan washer head screw (7X0580WCQ) |
| Pivot Type | Single |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1/2" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 3390 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Easy-Fix |
| Material | Steel |
| Patent | 7653967 |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | Screw Expanding Dowel |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
