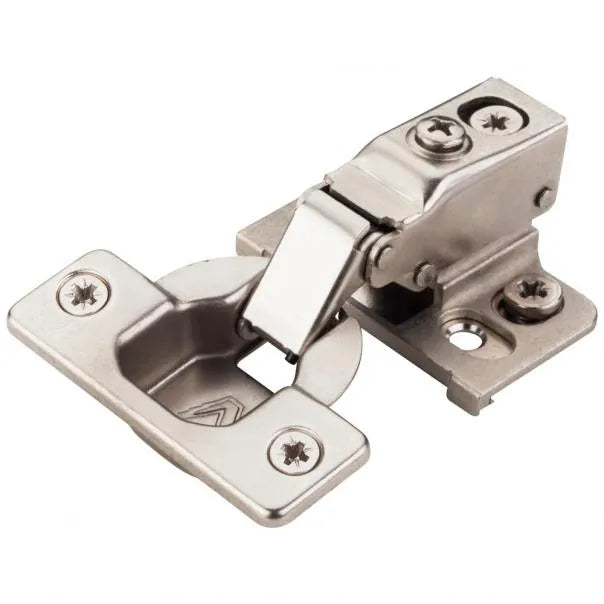

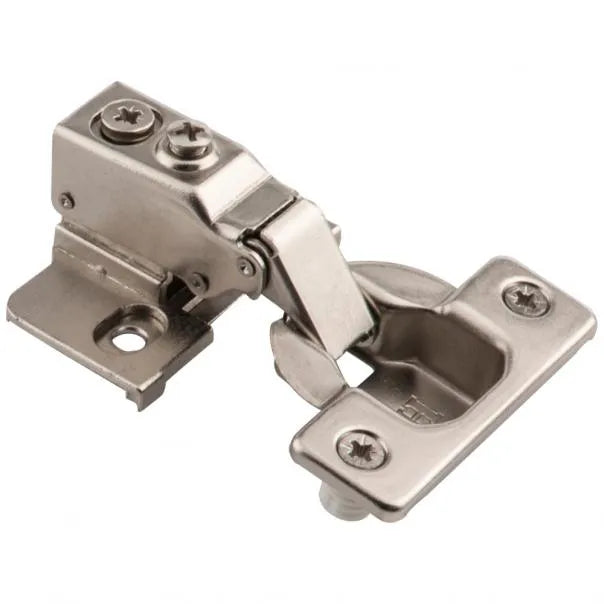

HR MAX™ 105° 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge with Dowels
HR MAX™ 105° 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge with Dowels
Regular price
$4.39 USD
Regular price
Sale price
$4.39 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-
Robust die cast face frame plate securely grasps the frame and provides two attachment points
-
Concealed soft-close damper
-
One piece 6-way adjustable compact assembly with vertical, horizontal, and depth cam adjustment Dual pivot point
| tem Number | 22855-9SFT |
|---|---|
| Closing | Soft-close |
| Hinge Cup Bore Depth | 12.5 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #6 x 5/8" pan washer head screw (6X258017Q) |
| Cabinet Type | Faceframe |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1/2" |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 22855 |
| Finish | Zinc |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Patent | 7594300 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012 |
| Installation | Screw Expanding Dowel |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
