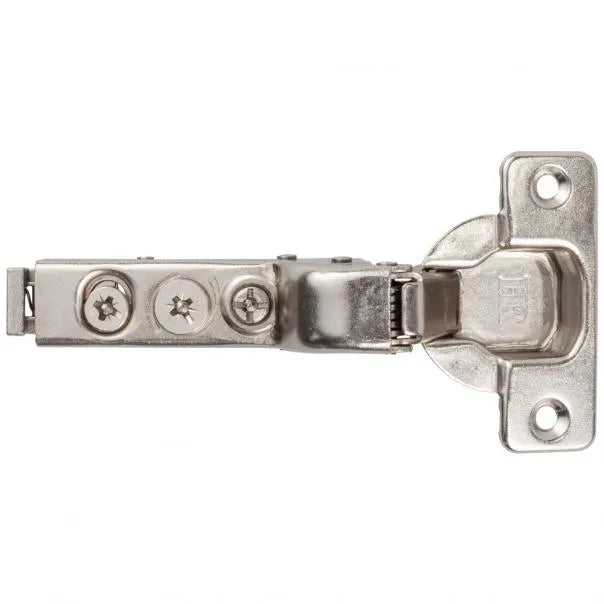

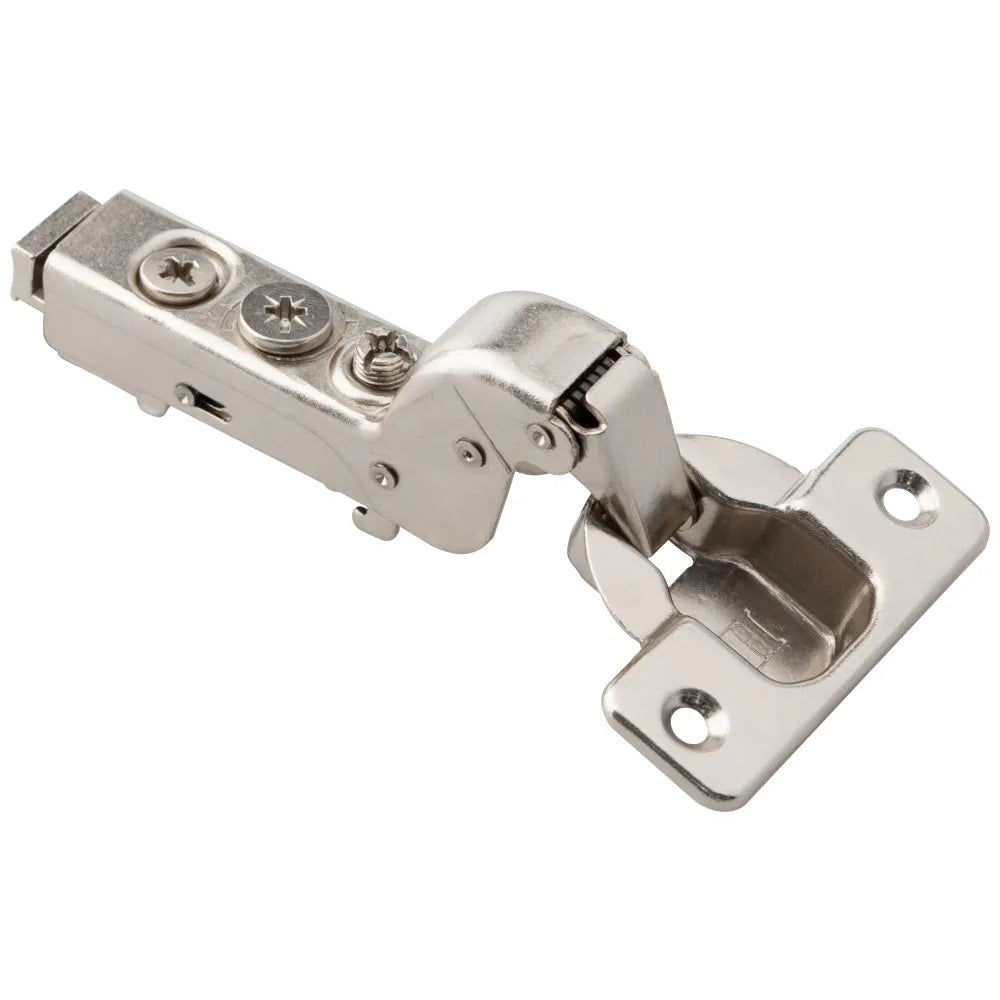

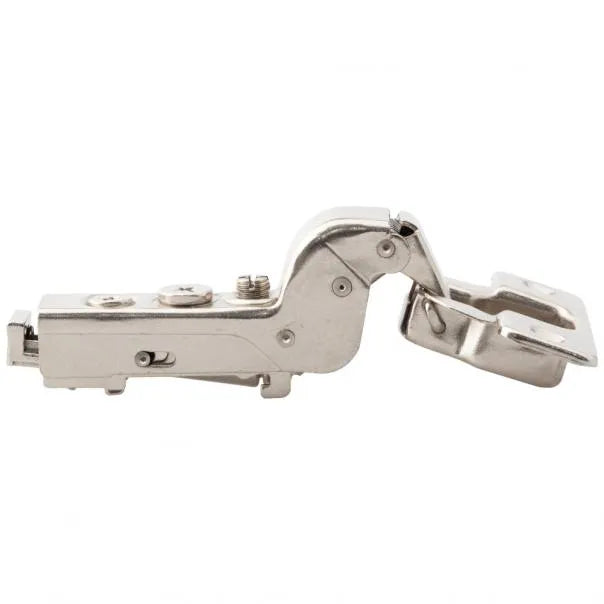

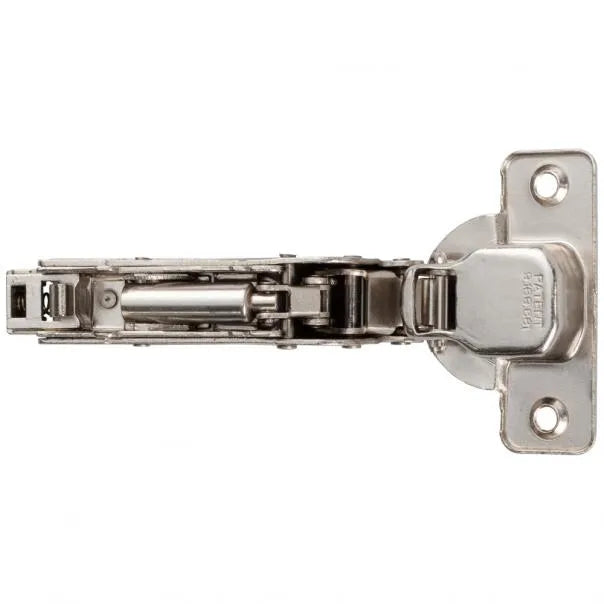

HR MAX™ 110° 15 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge without Dowels

Name: HR MAX™ 110° 15 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge without Dowels
Brand: HARDWARE RESOURSE
SKU: 1750.0537.25
Price: 5.42 USD
Availability: InStock

$5.42 USD

Sale Sold out

Quantity

HR Max = Quality backed by Lifetime warranty
Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door
Heavy duty spring and linkage system
Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles
15 mm Crank

Item Number	1750.0537.25
Closing	Soft-close
Cycles	100,000+
Hinge Cup Bore Depth	11.2 mm
Arm Type	Full Cranked
Hinge Type	European
Mount Centers	45 mm
Cabinet Type	Faceframe or Frameless
Pivot Type	Dual
ADA	No
Packaging Type	Small Package
Degree of Opening	110°
Overlay	Inset
Hinge Crank Amount	15 mm
Overlay Adjustment	+2 mm, -2 mm
Depth Adjustment	+3 mm, -2 mm
Adjustment Type	Cam
Sold By	Each
Brand	HR Max
Series	1750 Series
Finish	Polished Nickel
Overall Length	72 mm
Hinge Cup Diameter	35 mm
Hinge Dowels	Without (no dowels)
Material	Steel
Patent	US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2
Certification	ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012
Installation	No Dowels
Mount Type	Screw
Warranty Period	Limited Lifetime
