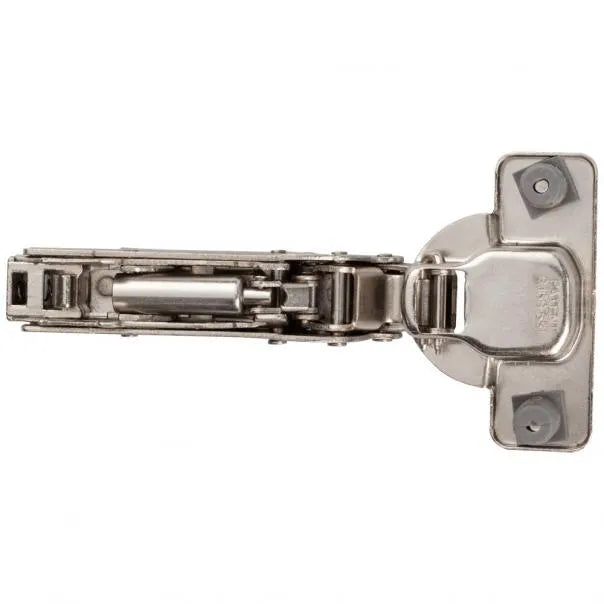

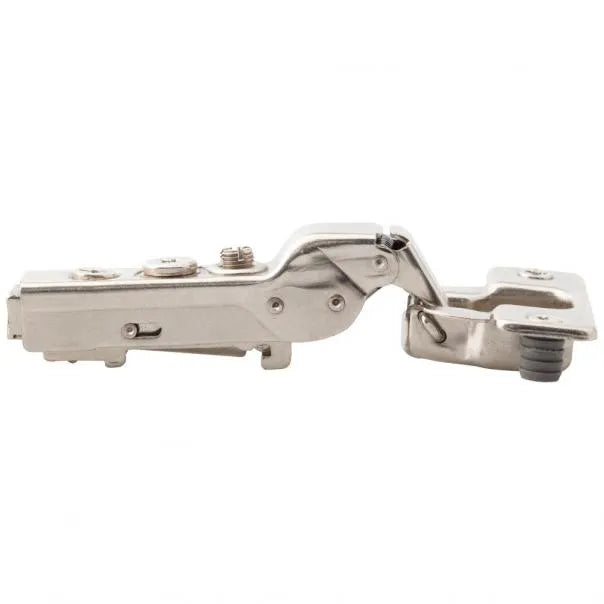

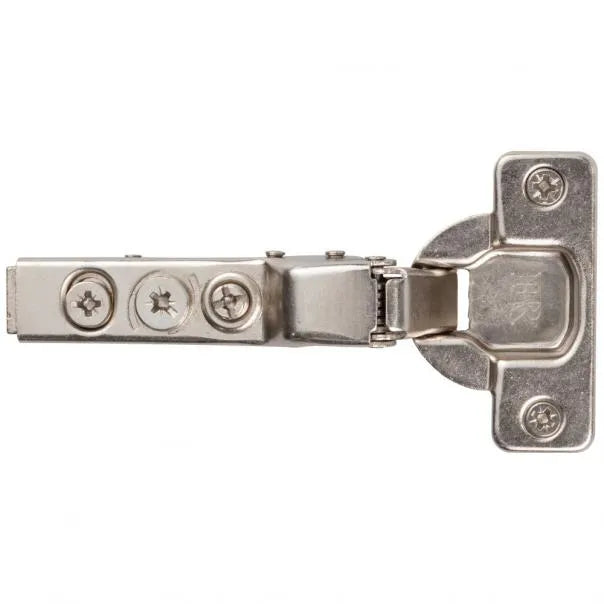

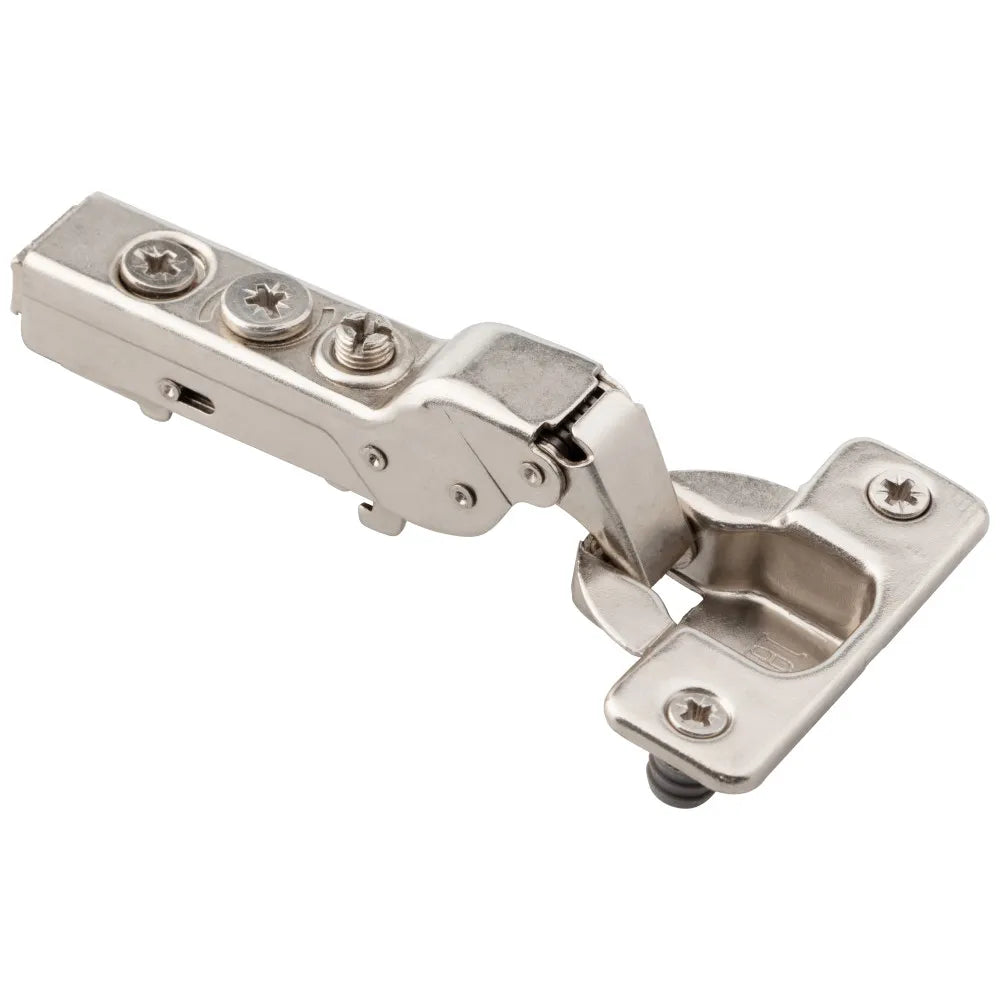

HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge with Press-in 8 mm Dowels
HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge with Press-in 8 mm Dowels
Regular price
$5.44 USD
Regular price
Sale price
$5.44 USD
Unit price
/
per
Couldn't load pickup availability
HR Max = Quality backed by Lifetime warrantyPatented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the doorHeavy duty spring and linkage systemGrade 2 ANSI/BHMA certified to ANSI 100,000 cycles9 mm Crank
| Item Number | 1750.0179.25 |
|---|---|
| Closing | Soft-close |
| Cycles | 100,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Half Cranked |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Half Overlay |
| Hinge Crank Amount | 9 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 1750 Series |
| Finish | Polished Nickel |
| Overall Length | 72 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Patent | US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012 |
| Installation | Press-in 8 mm Dowels |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
