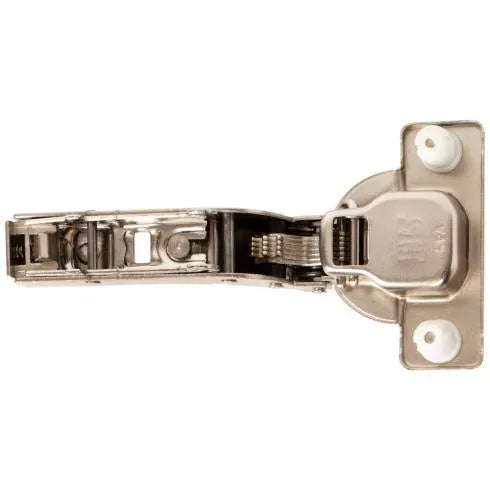

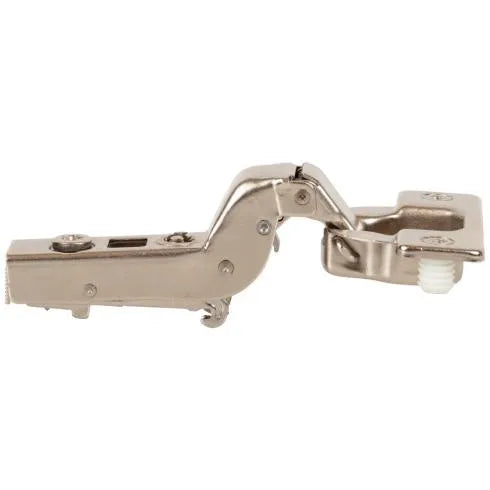

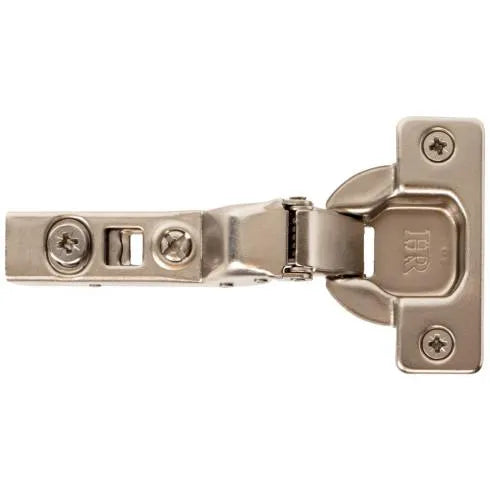

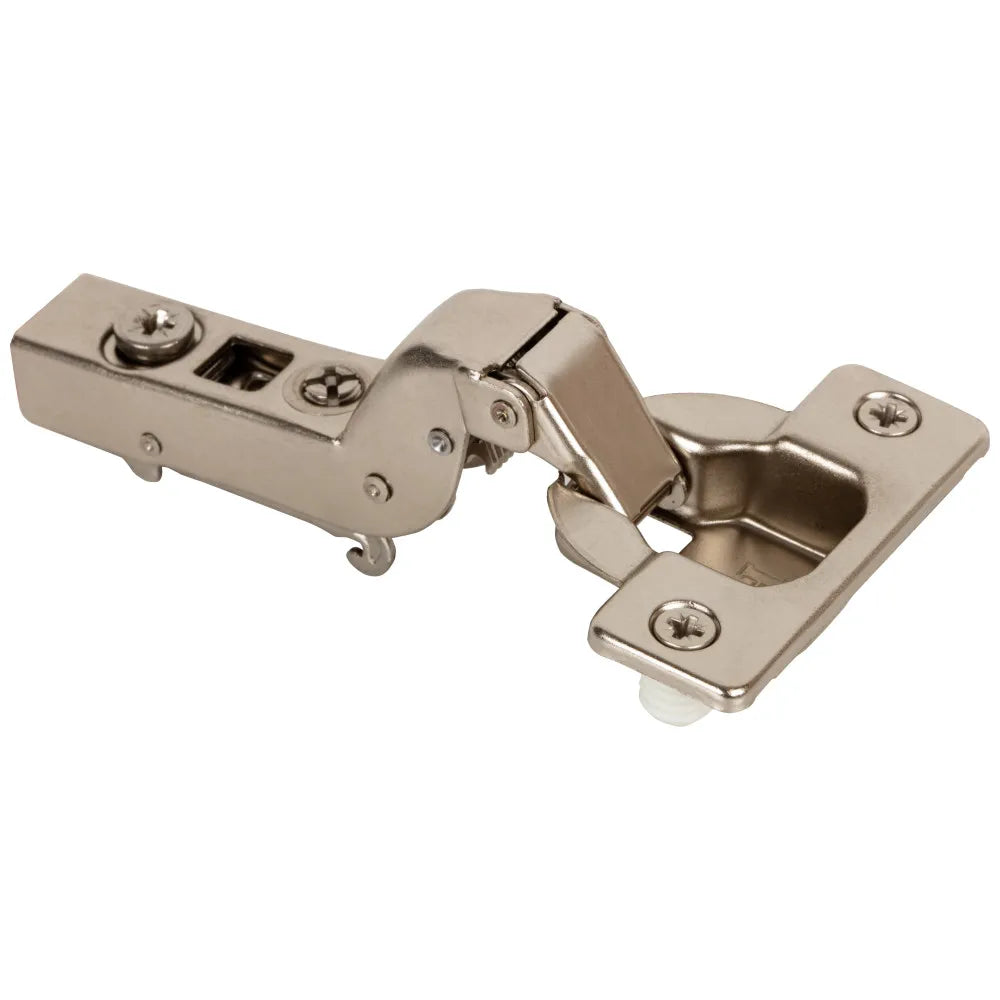

HR MAX™ 110° Heavy Duty Inset Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels

Name: HR MAX™ 110° Heavy Duty Inset Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels
Brand: HARDWARE RESOURSE
SKU: 725.0280.25
Price: 2.72 USD
Availability: InStock

$2.72 USD

Sale Sold out

Quantity

HR Max = Quality backed by Lifetime warranty
Heavy duty spring and patented linkage system
All metal concealed damper provides a life time of worry-free use
Woodwork Institute Listed Product
Hinge and plate provide 6-way adjustability
15 mm Crank

Item Number	725.0280.25
Closing	Self-close
Cycles	50,000+
Hinge Cup Bore Depth	11.2 mm
Arm Type	Full Cranked
Hinge Type	European
Inset	Full
Mount Centers	45 mm
Cabinet Type	Faceframe or Frameless
Pivot Type	Dual
ADA	No
Packaging Type	Small Package
Degree of Opening	110°
Hinge Crank Amount	15 mm
Overlay Adjustment	+2 mm, -2 mm
Depth Adjustment	+3 mm, -2 mm
Adjustment Type	Cam
Sold By	Each
Brand	HR Max
Series	725 Series
Finish	Polished Nickel
Overall Length	68 mm
Hinge Cup Diameter	35 mm
Hinge Dowels	Press-in
Material	Steel
Patent	8,819,897 B2
Certification	ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012, Woodwork Institute
Installation	Press-in 8 mm Dowels
Mount Type	Press-in
Warranty Period	Limited Lifetime
