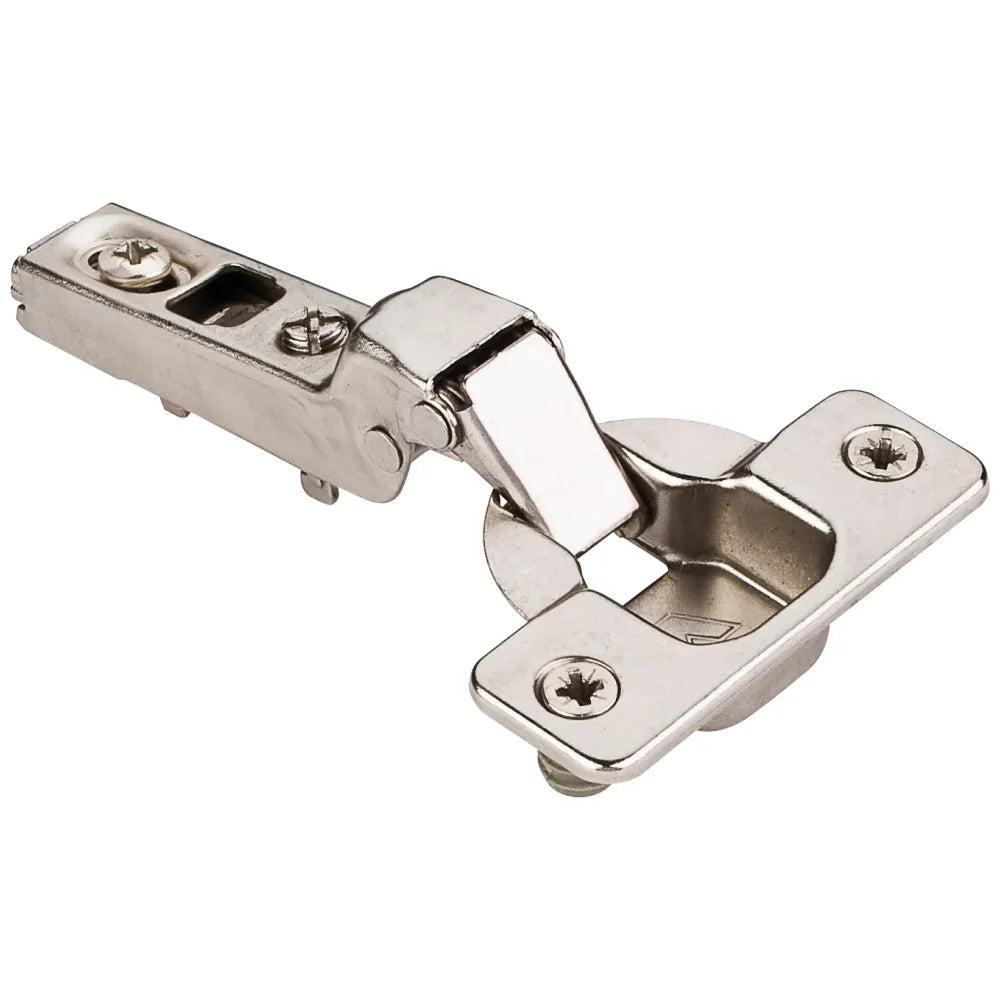

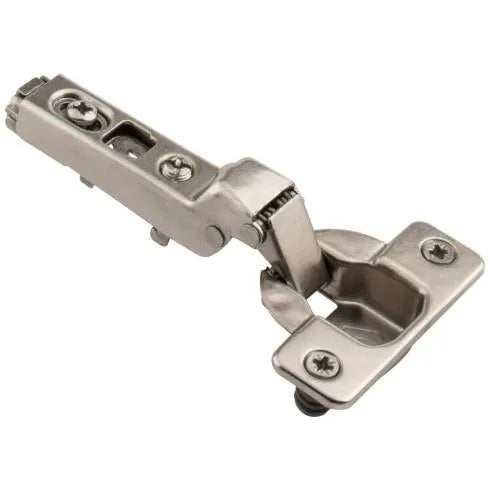

HR MAX™ 110° Partial Overlay Screw Adjustable Standard Duty Hinge with Press-in 8 mm Dowels

HR MAX™ 110° Partial Overlay Screw Adjustable Standard Duty Hinge with Press-in 8 mm Dowels

$2.23 USD
$2.23 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Standard Duty European Hinge with the performance you need and competitive price point

  • Hinge and plate provide 6-way adjustability

  • Lever-top available: Provides toolless installation and removal

  • Compatible with 400 series mounting plates



Details
Item Number 500.0279.75
Closing Self-close
Hinge Cup Bore Depth 11.2 mm
Arm Type Half Cranked
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Half Overlay
Hinge Crank Amount 9 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Screw
Sold By Each
Brand HR Max
Series 500 Series
Finish Polished Nickel
Overall Length 68 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Certification ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
