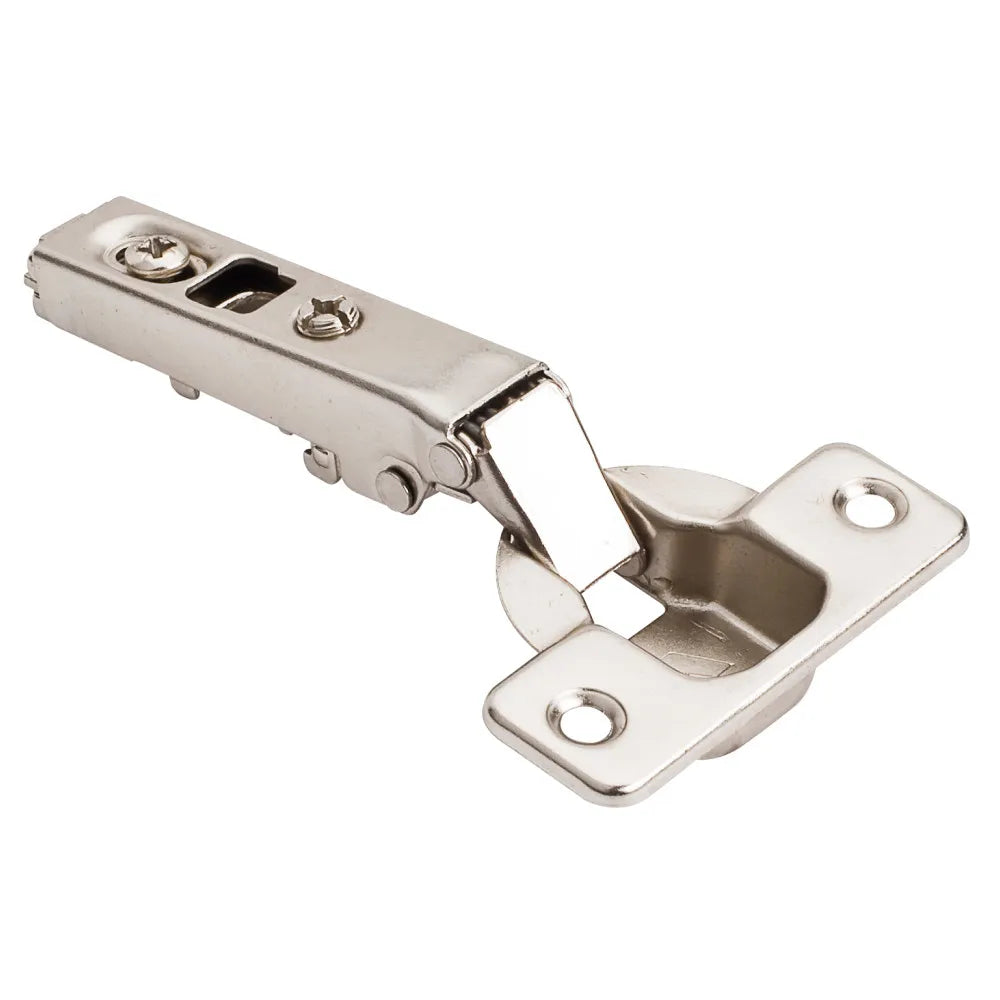

HR MAX™ 110° Standard Duty Full Overlay Cam Adjustable Self-close Hinge without Dowels
HR MAX™ 110° Standard Duty Full Overlay Cam Adjustable Self-close Hinge without Dowels
Regular price
$1.67 USD
Regular price
Sale price
$1.67 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-
Standard Duty European Hinge with the performance you need and competitive price point
-
Hinge and plate provide 6-way adjustability
-
Lever-top available: Provides toolless installation and removal
-
Compatible with 400 series mounting plates
-
0 mm Crank
| Item Number | 500.0535.75 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 500 Series |
| Finish | Polished Nickel |
| Overall Length | 67 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | No Dowels |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
