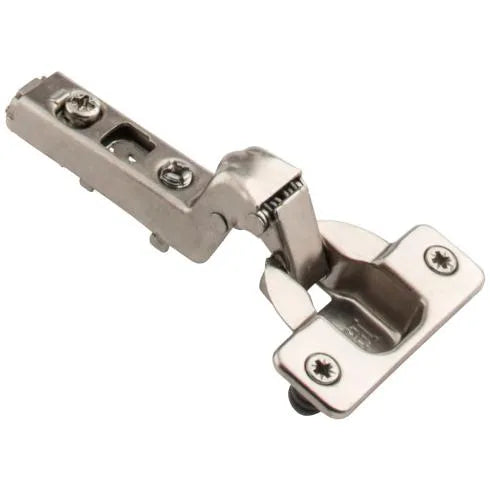

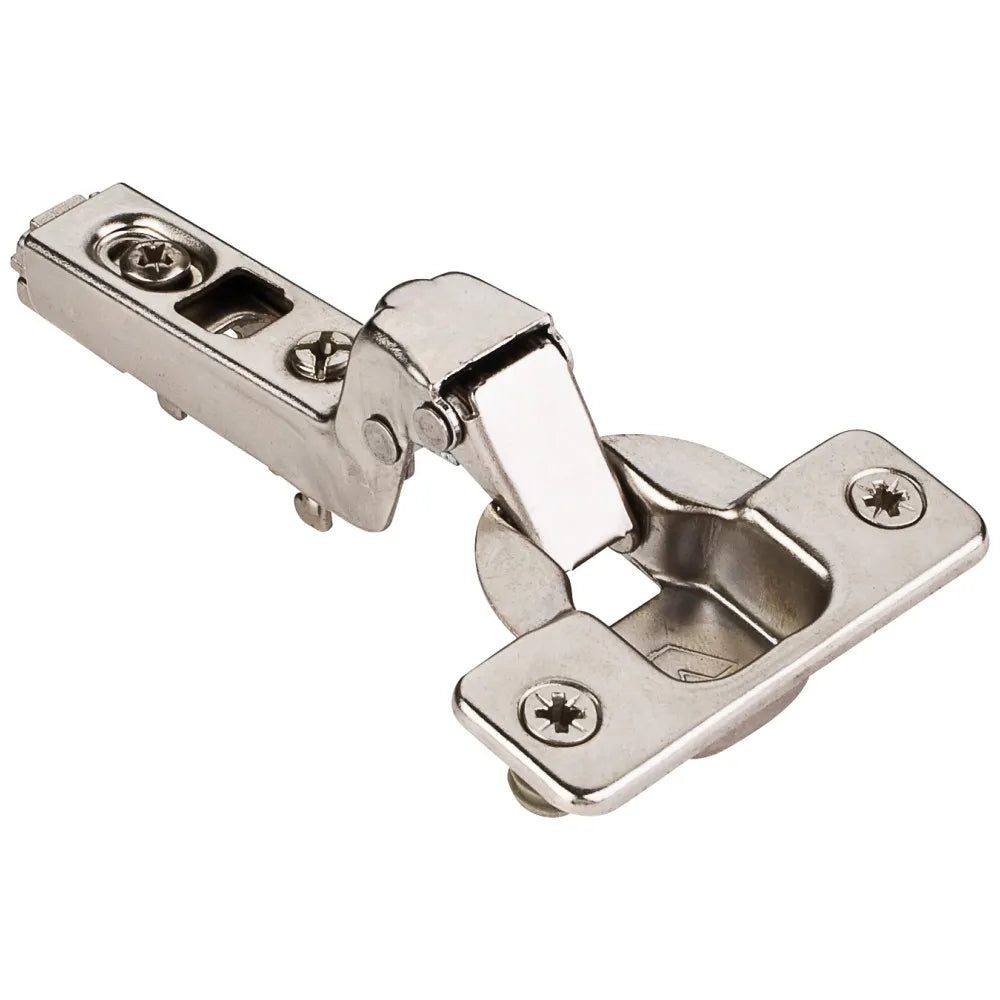

HR MAX™ 110° Standard Duty Inset Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels

HR MAX™ 110° Standard Duty Inset Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels

$2.43 USD
$2.43 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Standard Duty European Hinge with the performance you need and competitive price point

  • Hinge and plate provide 6-way adjustability

  • Lever-top available: Provides toolless installation and removal

  • Compatible with 400 series mounting plates

  • 15 mm Crank

Details
Item Number 500.0280.75
Closing Self-close
Hinge Cup Bore Depth 11.2 mm
Arm Type Full Cranked
Hinge Type European
Inset 3/8"
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Inset
Hinge Crank Amount 15 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 500 Series
Finish Polished Nickel
Overall Length 68 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Certification ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
