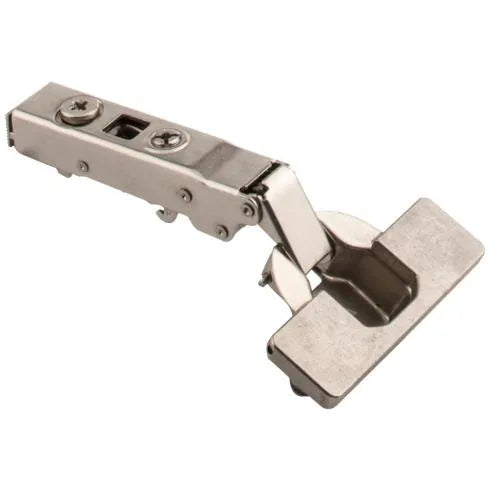

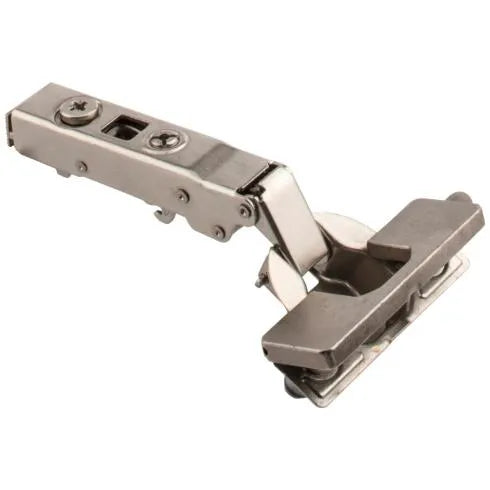

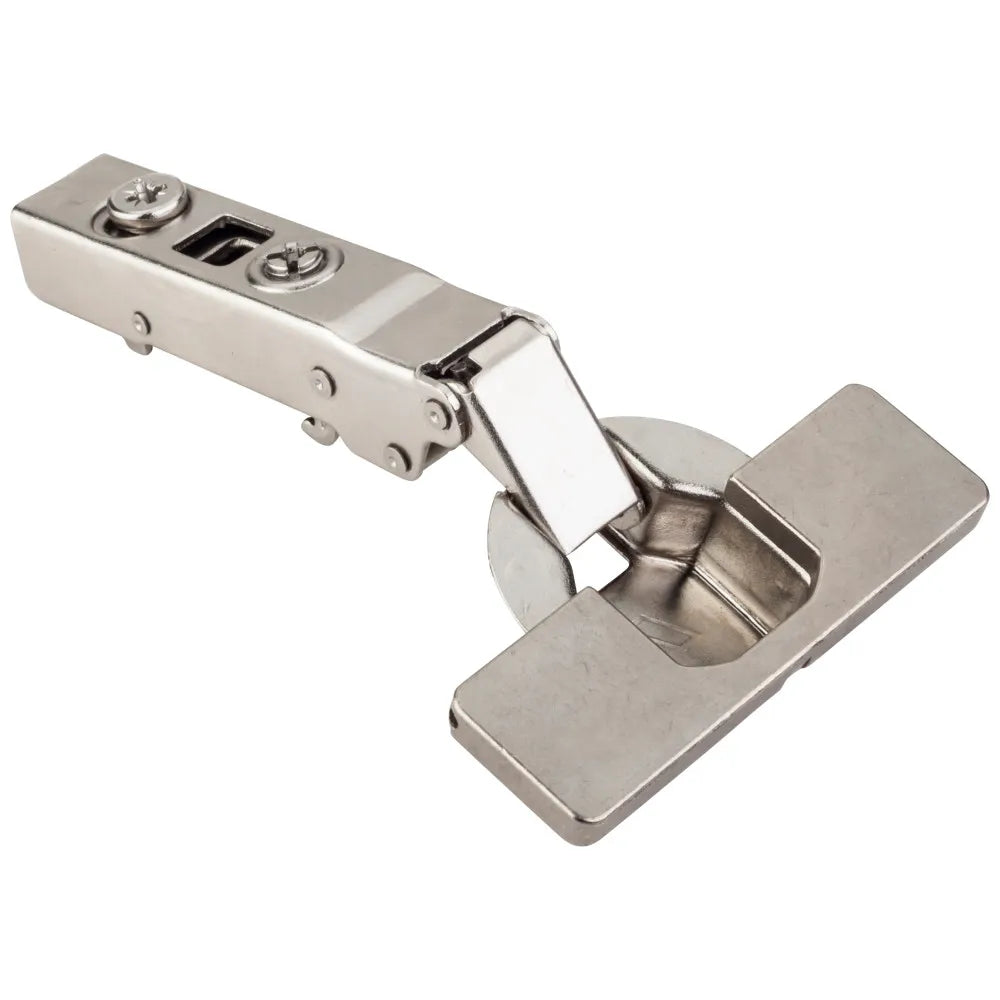

HR MAX™ 125° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels

HR MAX™ 125° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels

$7.31 USD
$7.31 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Heavy duty spring and patented linkage system

  • All metal concealed damper provides a life time of worry-free use

  • 2-stop action

  • 0 mm Crank

Details
Item Number 700.0U94.05
Closing Soft-close
Cycles 50,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Straight Arm
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 125°
Overlay Full Overlay
Hinge Crank Amount 0 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 700 Series
Finish Polished Nickel
Overall Length 68 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Lever-Top
Material Steel
Patent 8,819,897 B2
Certification ANSI/KCMA A161.1-2012
Installation Lever-Top Dowels
Mount Type Lever-Top Dowels
Warranty Period Limited Lifetime
