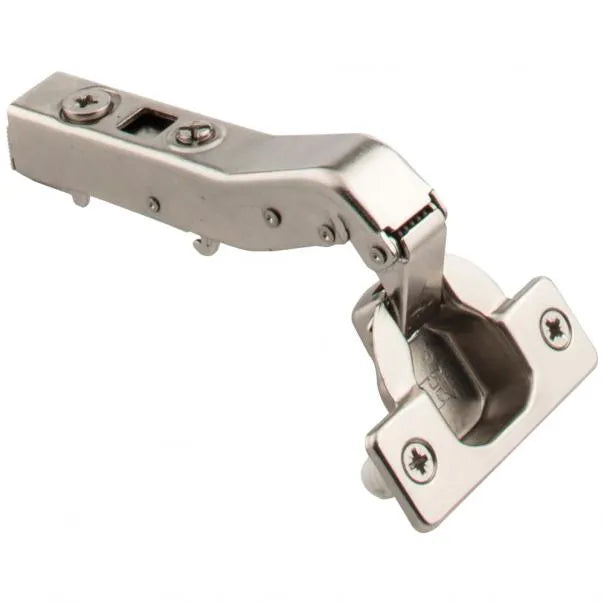

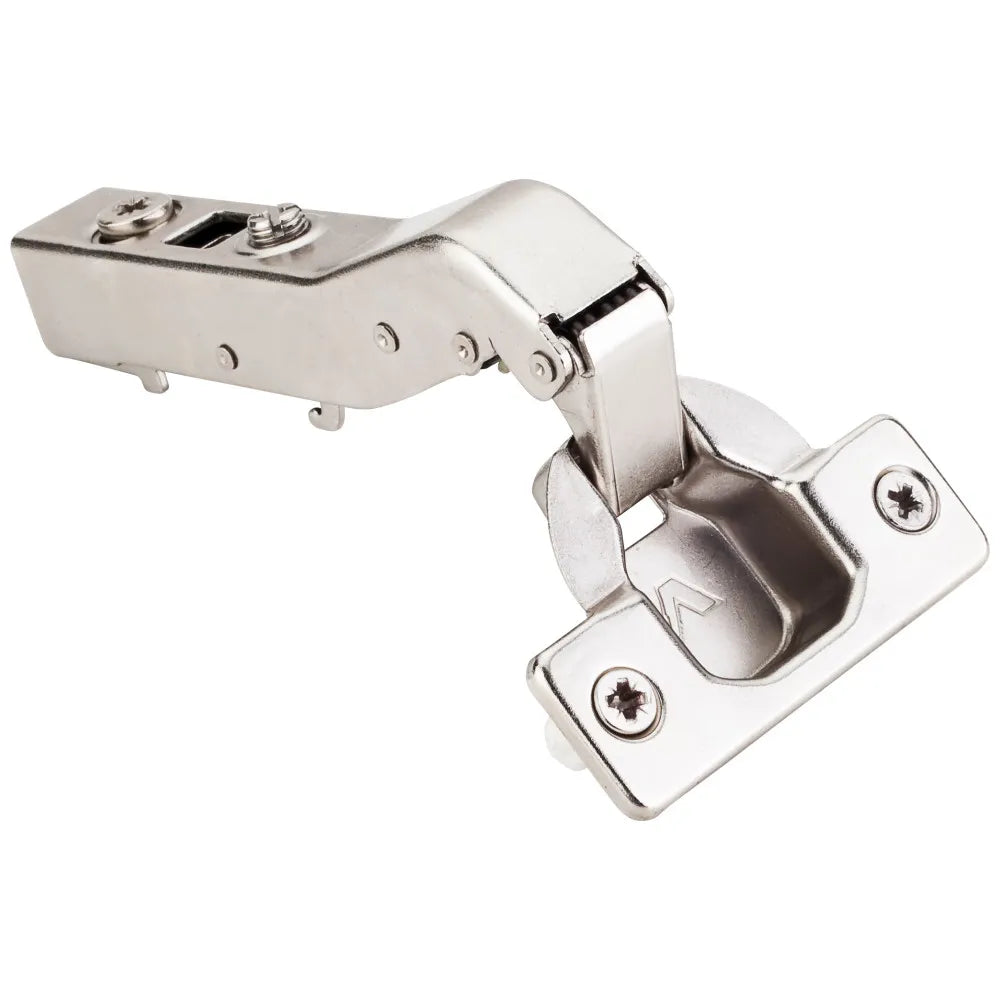

HR MAX™ 45° Heavy Duty Corner Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

HR MAX™ 45° Heavy Duty Corner Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

$9.29 USD
$9.29 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Heavy duty spring and patented linkage system

  • All metal concealed damper provides a life time of worry-free use

  • 2-stop action

  • Hinge and plate provide 6-way adjustability

  • Compatible with 600 series mounting plates

Details
Item Number 700.0N20.05
Closing Soft-close
Cycles 50,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Full Cranked
Hinge Type European
Inset 3/8"
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 105°
Overlay Inside Corner
Hinge Crank Amount 18 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 700 Series
Finish Polished Nickel
Overall Length 67 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Certification ANSI/KCMA A161.1-2012
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
