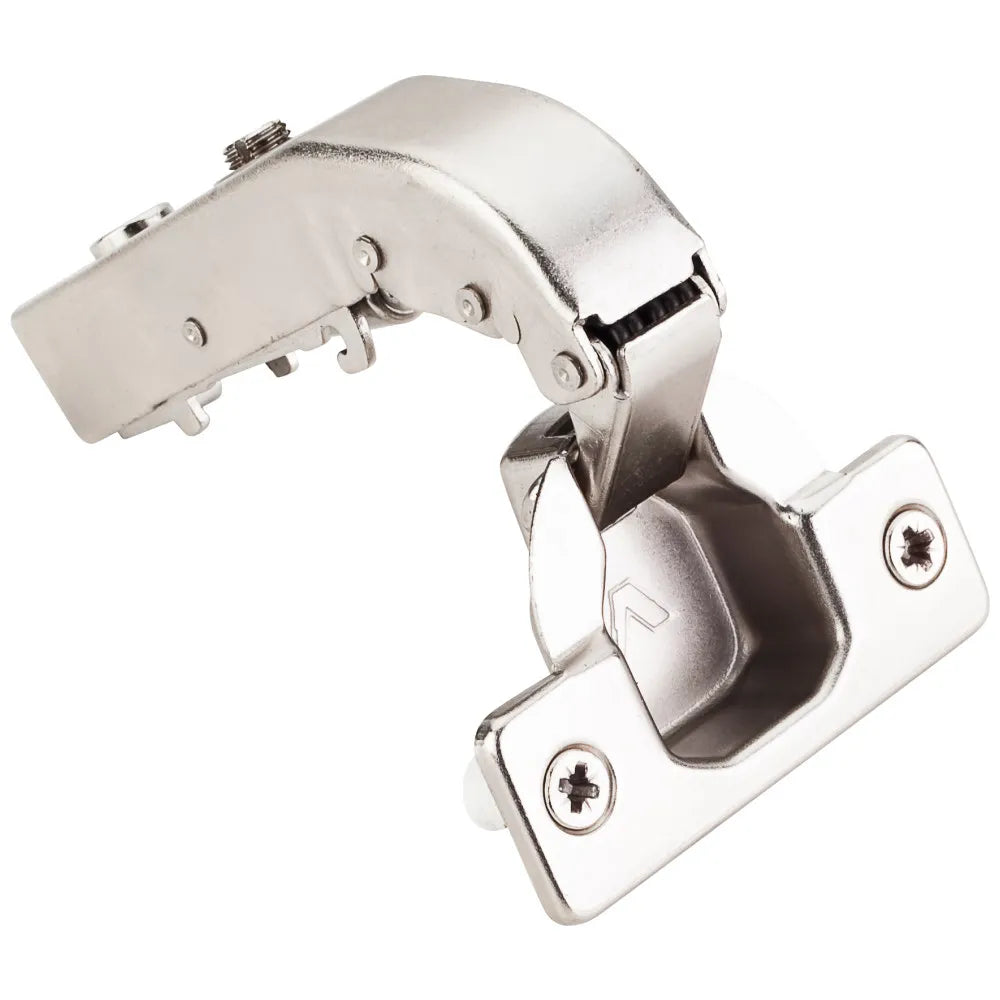

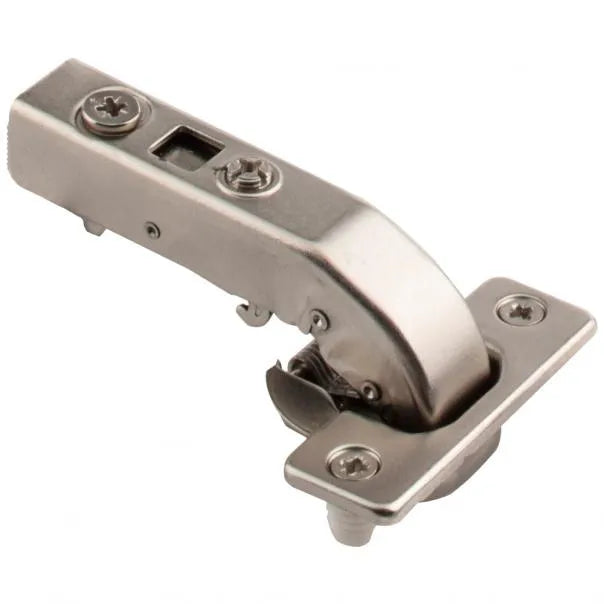

HR MAX™ 90° Heavy Duty Blind Corner Inset Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

HR MAX™ 90° Heavy Duty Blind Corner Inset Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

$9.29 USD
$9.29 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Heavy duty spring and patented linkage system

  • All metal concealed damper provides a life time of worry-free use

  • 2-stop action

  • 0 mm Crank

Details
Item Number 700.0N24.05
Closing Soft-close
Cycles 50,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Straight Arm
Hinge Type European
Inset Full
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 105°
Overlay Blind Corner
Hinge Crank Amount 0 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 700 Series
Finish Polished Nickel
Overall Length 87 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Certification ANSI/KCMA A161.1-2012
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
