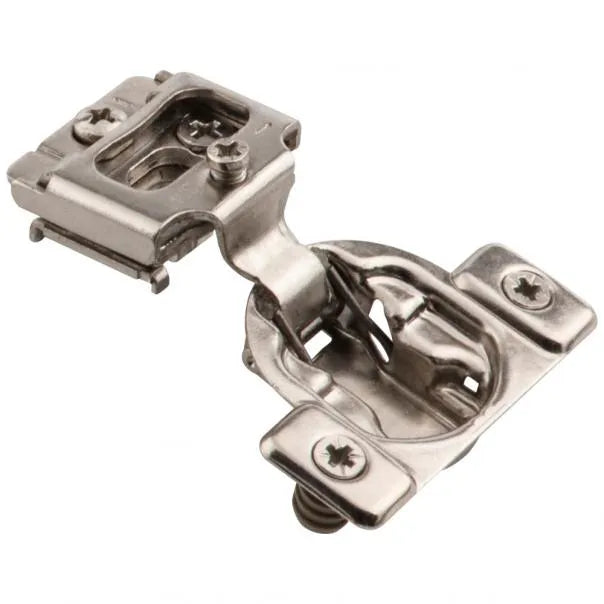

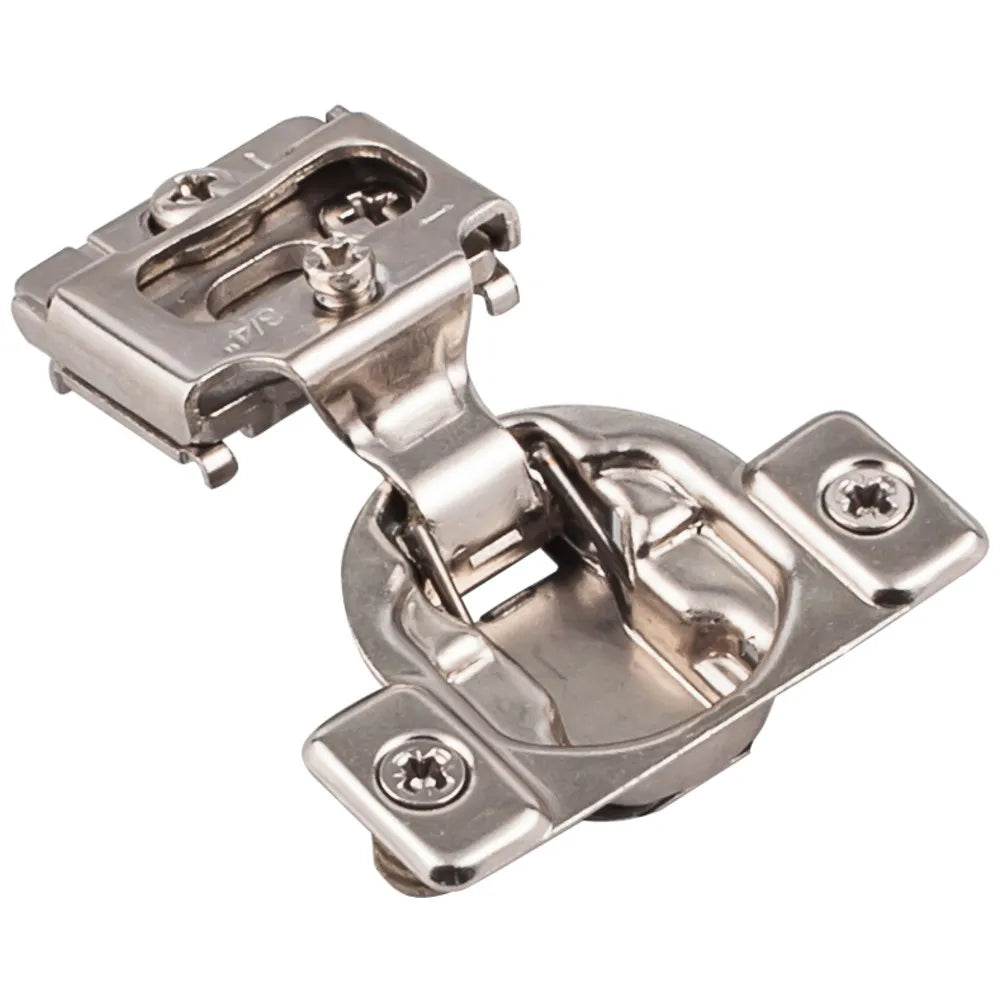

105° 3/4" Overlay Standard Duty Self-close Compact Hinge with Dowels
105° 3/4" Overlay Standard Duty Self-close Compact Hinge with Dowels
Regular price
$2.19 USD
Regular price
Sale price
$2.19 USD
Unit price
/
per
Couldn't load pickup availability
-
Designed spring and arm for better support
-
Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
-
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
| Item Number | 4390-6-000 |
|---|---|
| Closing | Self-close |
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 10.3 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #7 x 5/8" pan washer head screw (7X0580WCQ) |
| Pivot Type | Single |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 3/4" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 4390 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Certification | Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles |
| Installation | Screw Expanding Dowel |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
