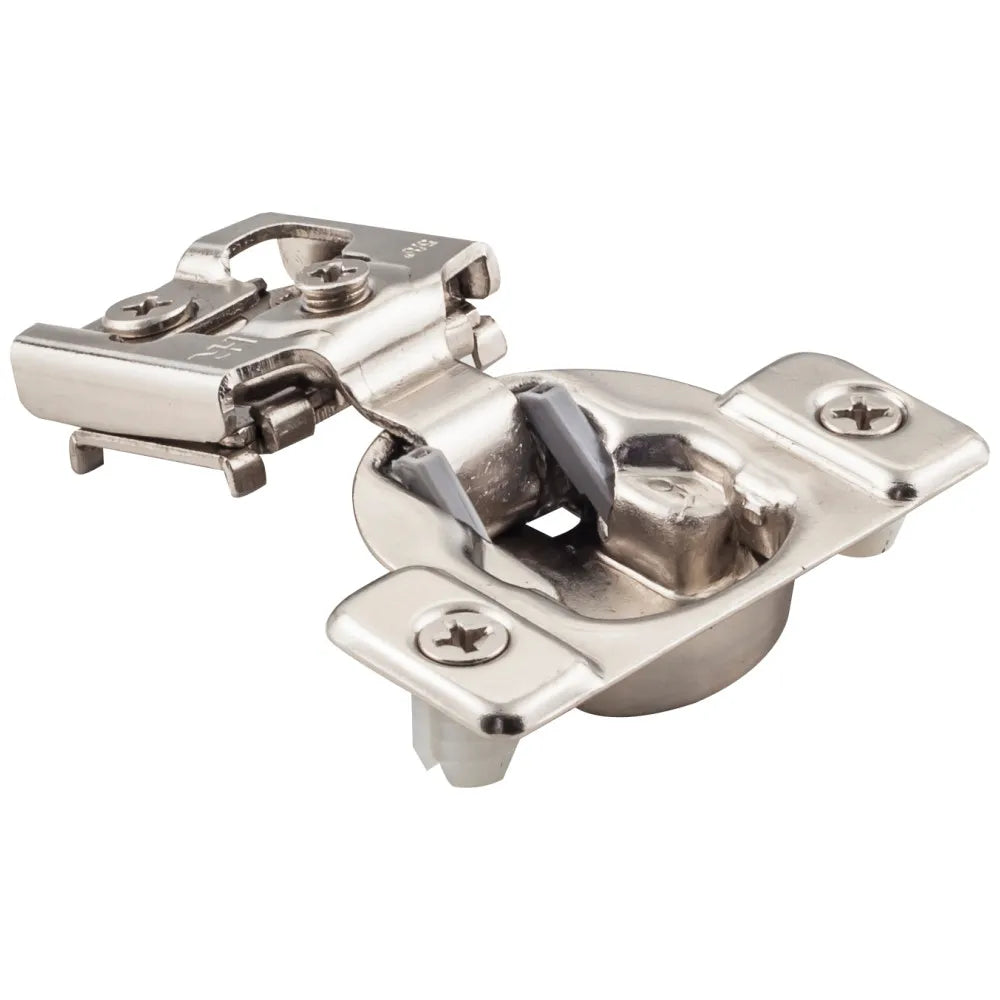

105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels
105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels
Regular price
$2.39 USD
Regular price
Sale price
$2.39 USD
Unit price
/
per
Couldn't load pickup availability
-
Patent pending spring sleeves reduce friction and wear
-
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
-
For face frame applications
-
Single pivot point
-
6-way adjustability
-
Compatible with 7390 Series self-close hinges
| Item Number | 6390-058 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #7 x 5/8” pan washer head screw (7X0580WCQ) |
| Cabinet Type | Faceframe |
| Pivot Type | Single |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 5/8" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 6390 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Patent | 10,030,427 |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | Screw |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
