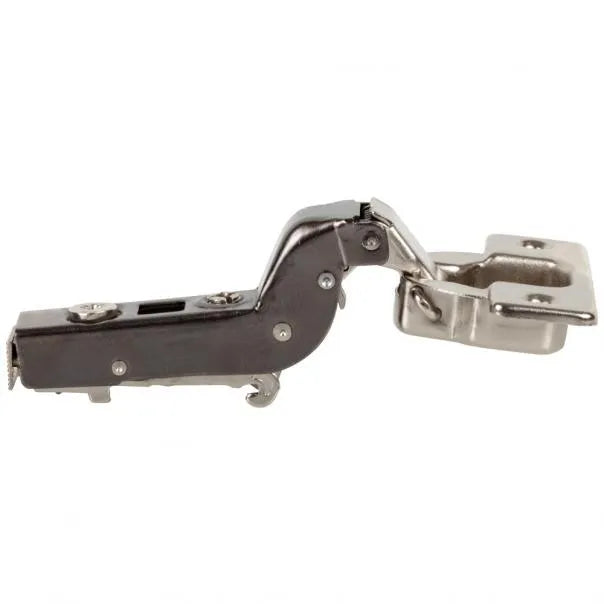

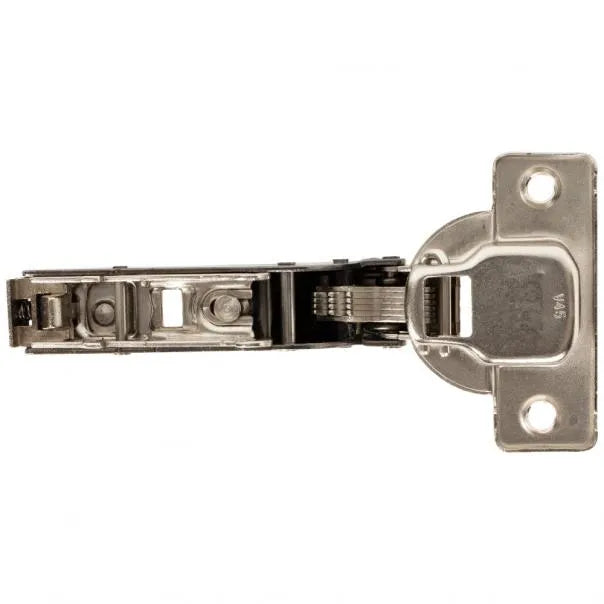

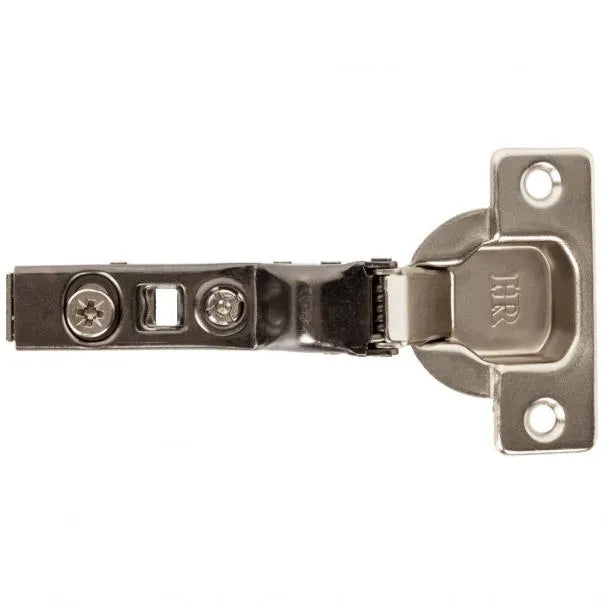

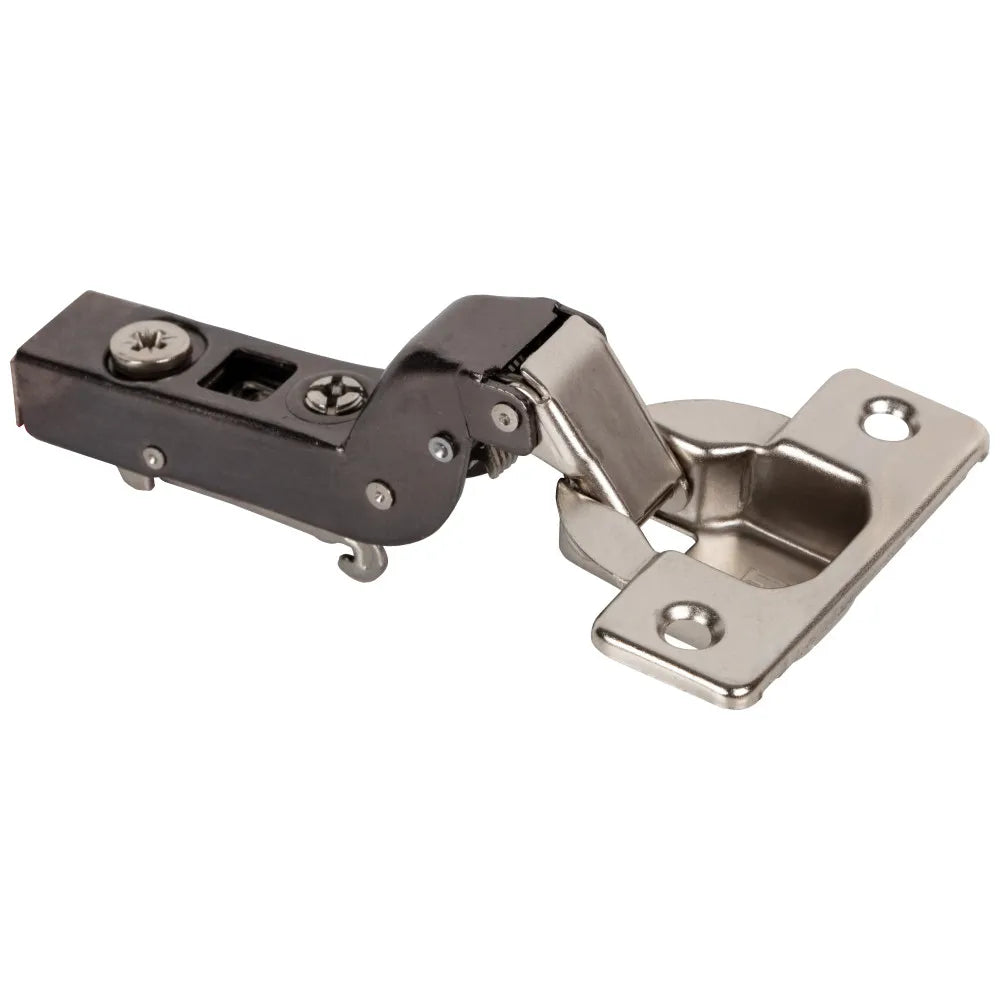

110° Inset Cam Adjustable Commercial Grade Hinge with Press-in 8 mm Dowels

110° Inset Cam Adjustable Commercial Grade Hinge with Press-in 8 mm Dowels

$4.10 USD
$4.10 USD
Sale Sold out

  • Patented Heavy Duty hinge designed specifically for rugged commercial use

  • Supports framed or frameless applications

    2 stop action

  • Compatible with 600 Series mounting plates

Details
Item Number 900.0537.25
Closing Self-close
Cycles 100,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Full Cranked
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Inset
Hinge Crank Amount 15 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand Hardware Resources
Series 900 Series
Finish Dark Nickel
Overall Length 70 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Without (no dowels)
Material Steel
Certification ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01
Installation No Dowels
Mount Type Screw
Warranty Period Limited Lifetime
