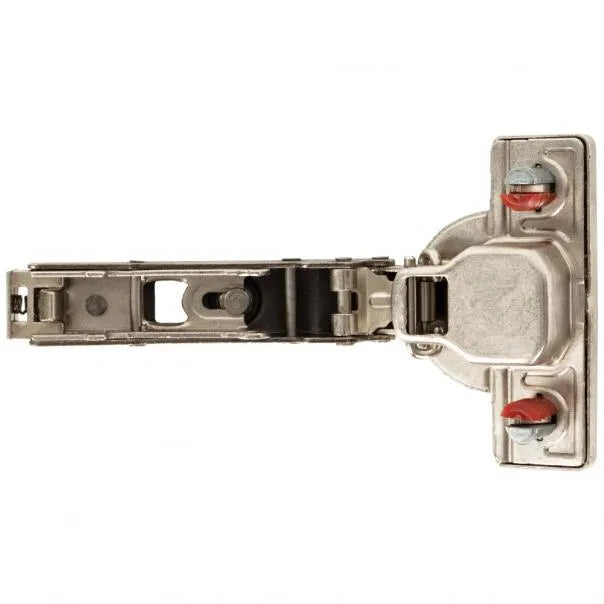

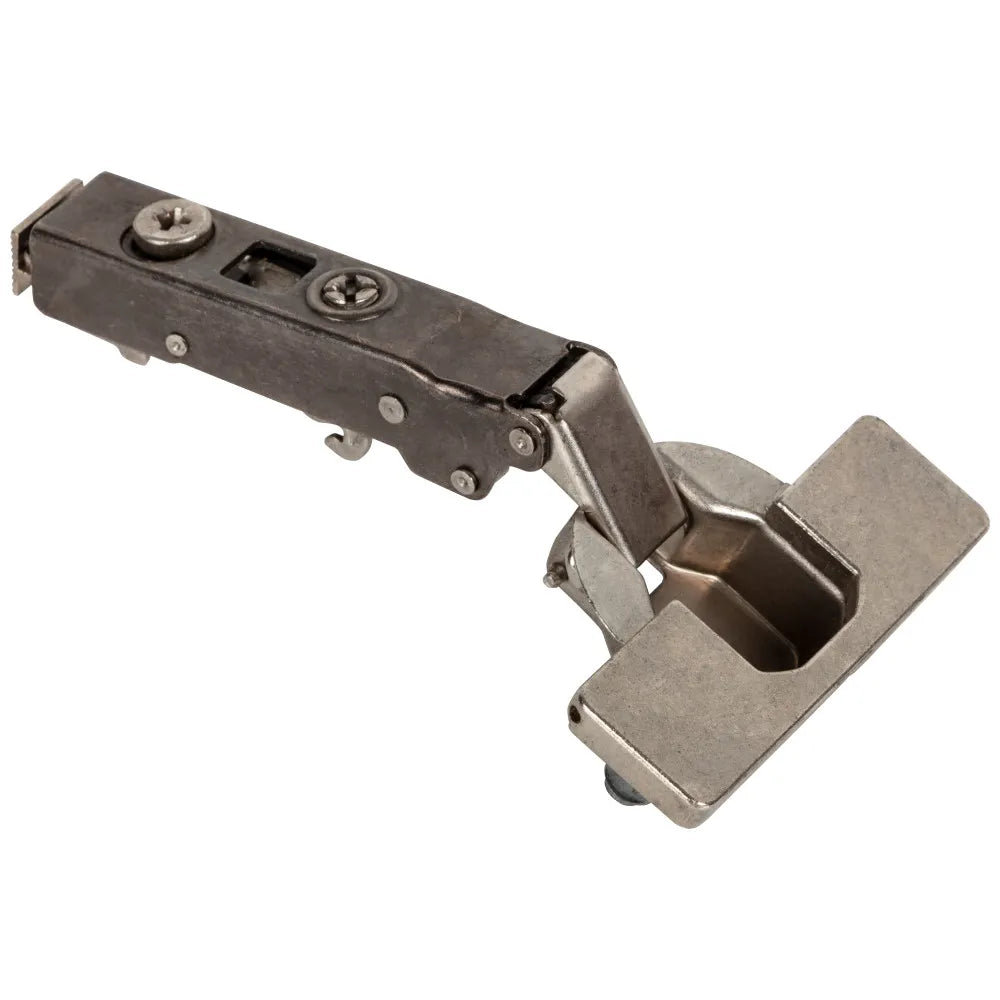

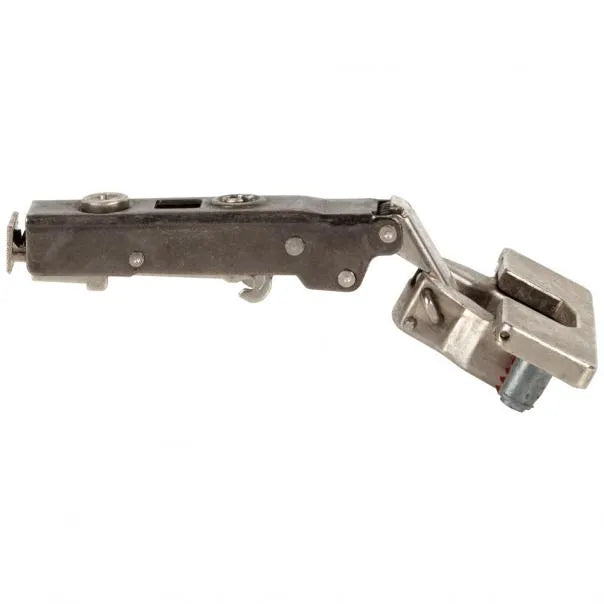

125° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge with Lever-Top Dowels
125° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge with Lever-Top Dowels
Regular price
$6.82 USD
Regular price
Sale price
$6.82 USD
Unit price
/
per
Couldn't load pickup availability
-
Patented Heavy Duty hinge designed specifically for rugged commercial use
-
Supports framed or frameless applications
-
Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles
-
0 mm Crank
| Item Number | 900.0U94.05 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 125° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 900 Series |
| Finish | Dark Nickel |
| Overall Length | 68 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Lever-Top |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01 |
| Installation | Lever-Top Dowels |
| Mount Type | Lever-Top Dowels |
| Warranty Period | Limited Lifetime |
