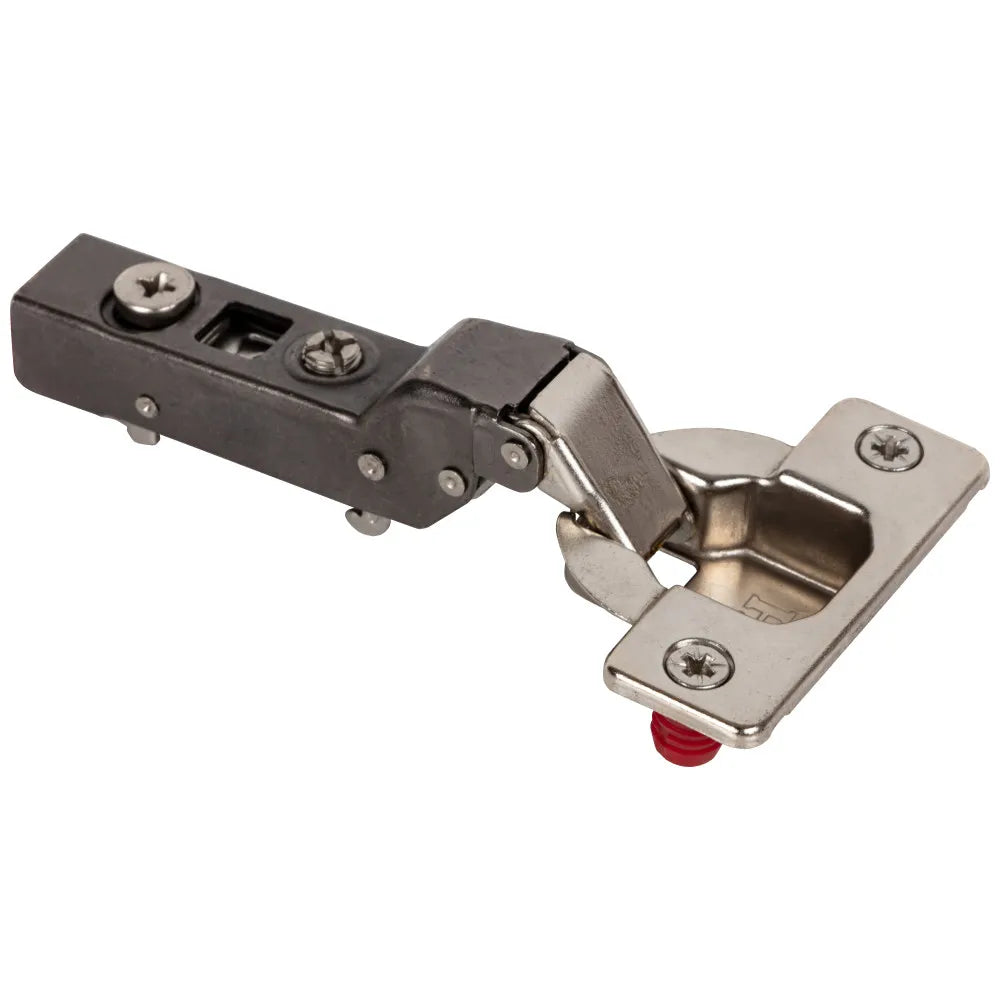

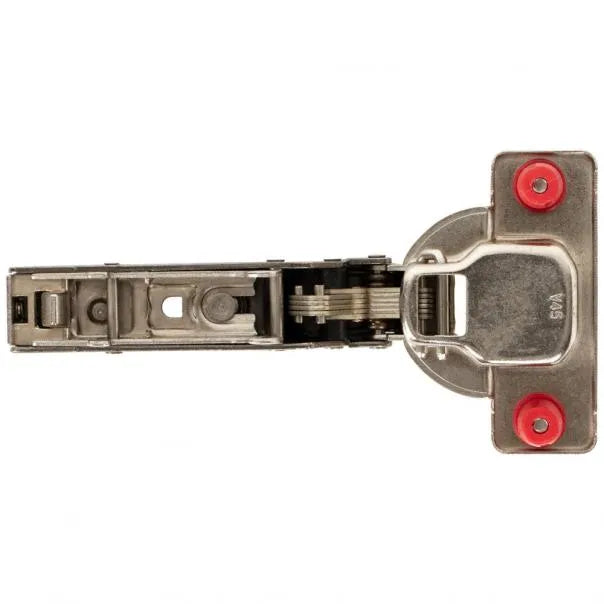

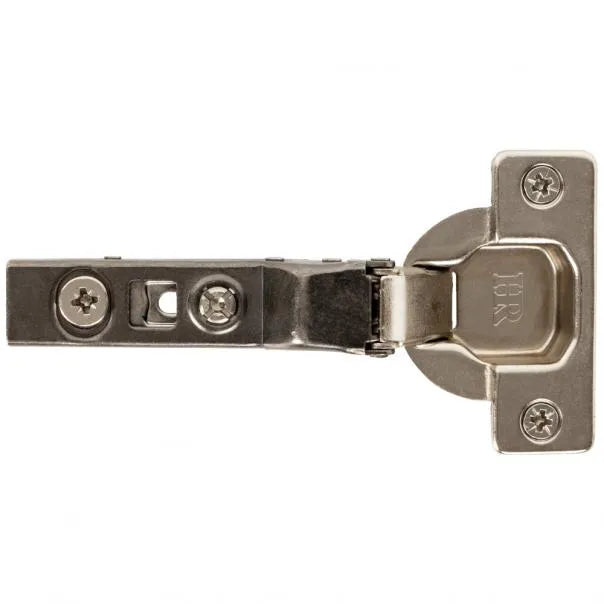

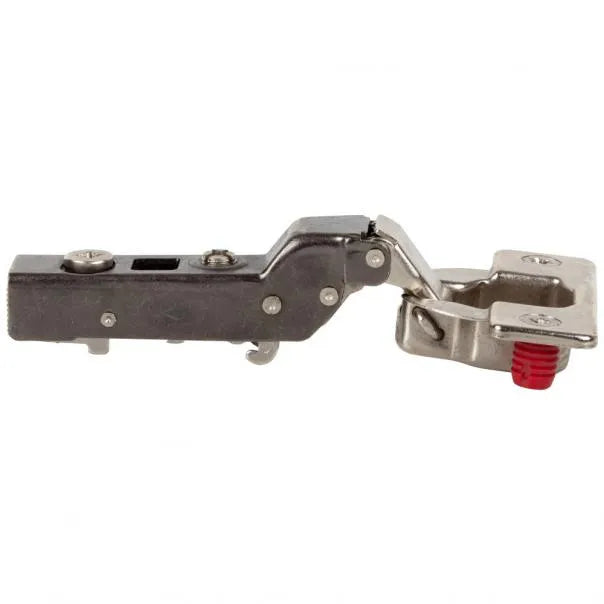

Commercial Grade Partial Overlay Cam Adjustable Self-close Hinge

Commercial Grade Partial Overlay Cam Adjustable Self-close Hinge

$3.90 USD
$3.90 USD
Sale Sold out

  • Patented Heavy Duty hinge designed specifically for rugged commercial use

  • Supports framed or frameless applications

  • Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles

  • 9 mm Crank

Details
Item Number 900.0179.25
Closing Self-close
Cycles 100,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Half Cranked
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Half Overlay
Hinge Crank Amount 9 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand Hardware Resources
Series 900 Series
Finish Dark Nickel
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Certification ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
