HARDWARE RESOURSE

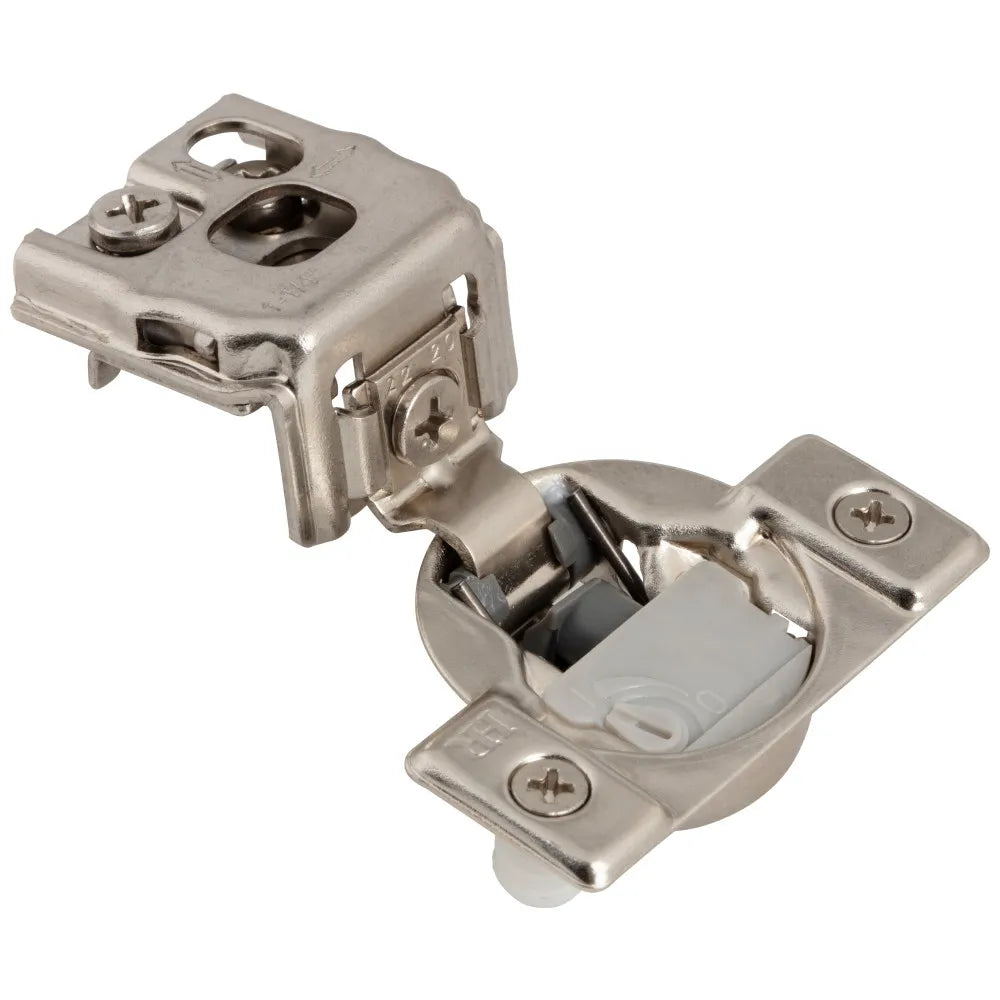

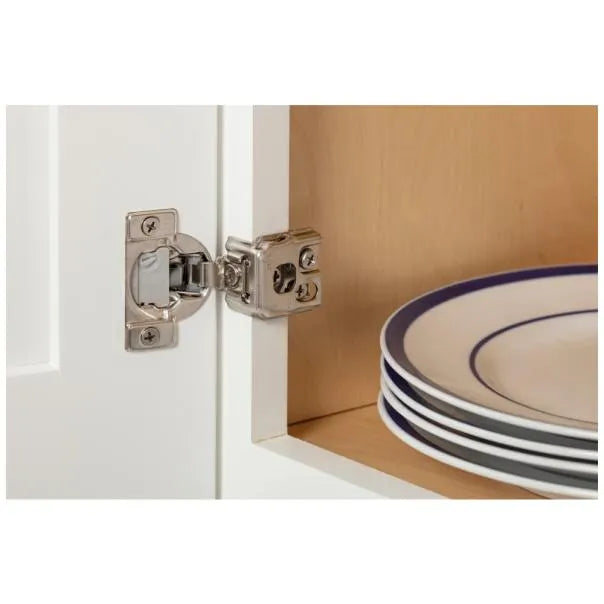

HR MAX™ 105° 1-1/4" Overlay Heavy Duty Adjustable Soft-close Compact Hinge with Press-in 8 mm Dowels
HR MAX™ 105° 1-1/4" Overlay Heavy Duty Adjustable Soft-close Compact Hinge with Press-in 8 mm Dowels
Regular price
$6.18 USD
Regular price
Sale price
$6.18 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-

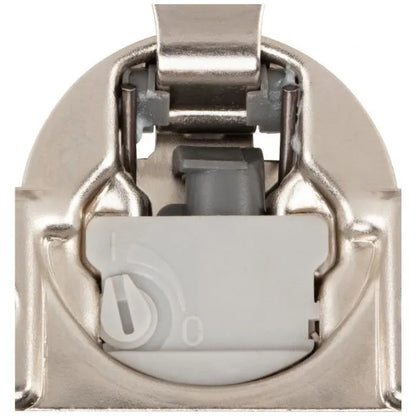

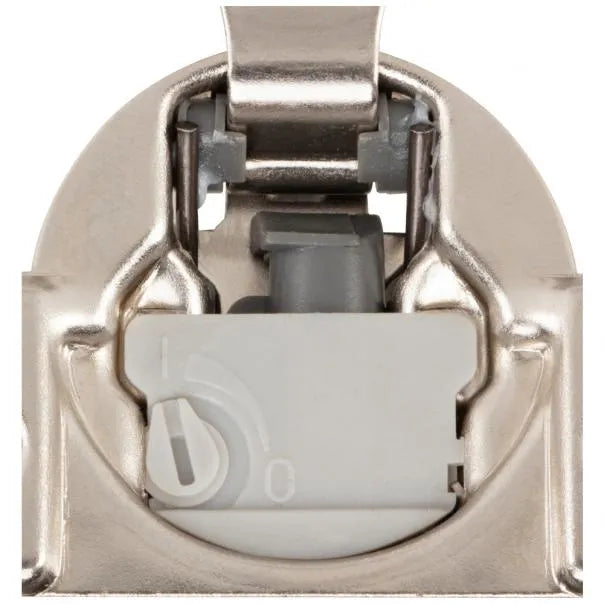

Tooled soft-close speed adjustment
-
Streamlined glide channels reduce friction and wear
-
Tested and proven soft-close mechanism will last the life of the hinge
-
Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
| Item Number | 9394-000ADJ |
|---|---|
| Closing | Soft-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe |
| Pivot Type | Single |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1-1/4" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 9390ADJ Series |
| Finish | Nickel |
| Hinge Cup Diameter | 35 mm |

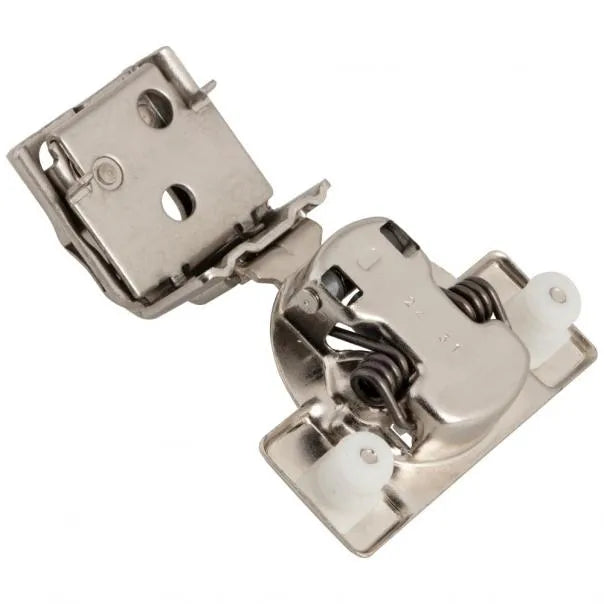

| Hinge Dowels | Press-in |
| Material | Steel |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2017 |
| Installation | Screw |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
