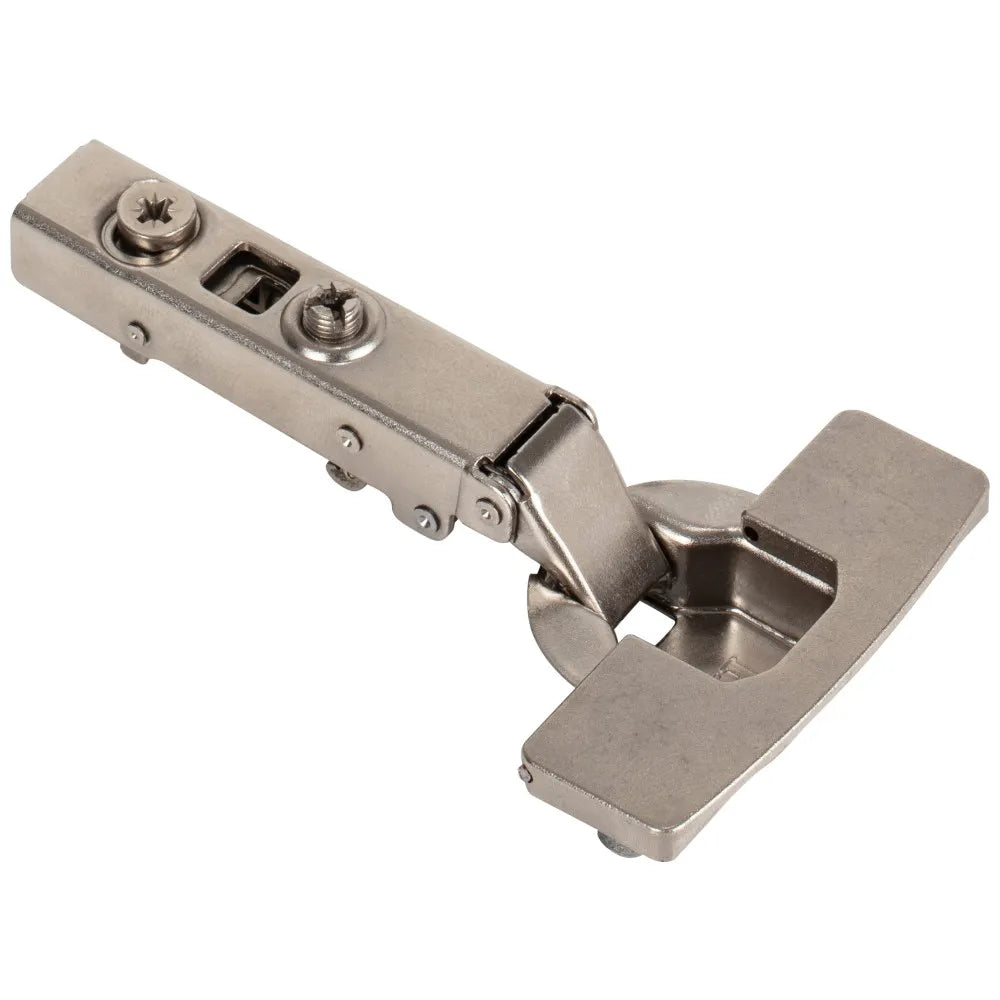

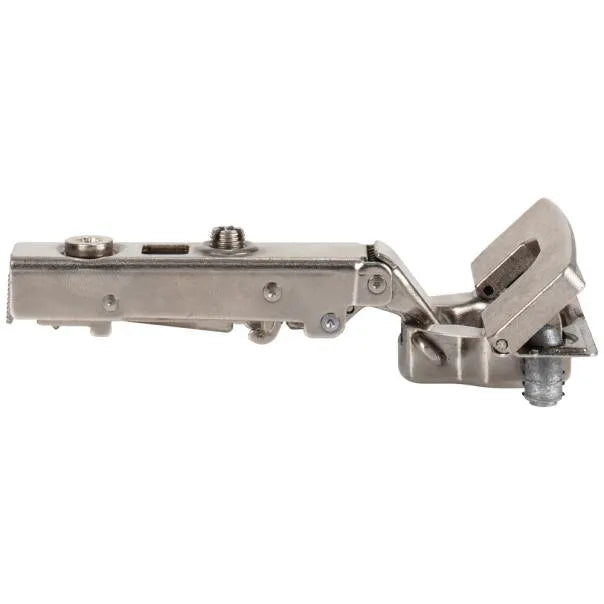

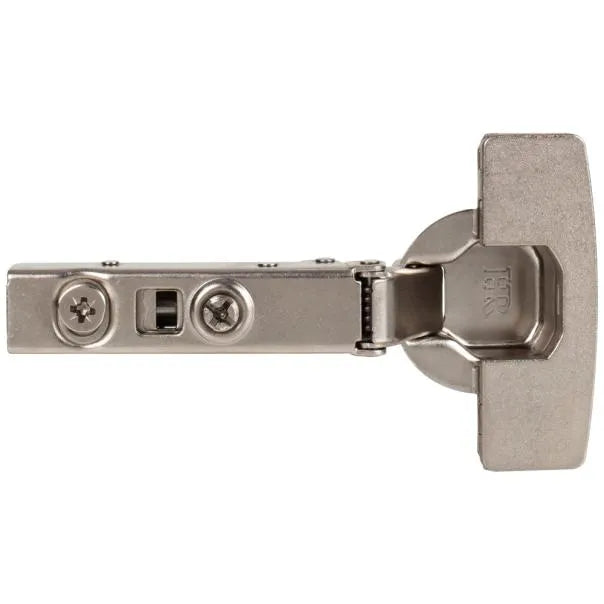

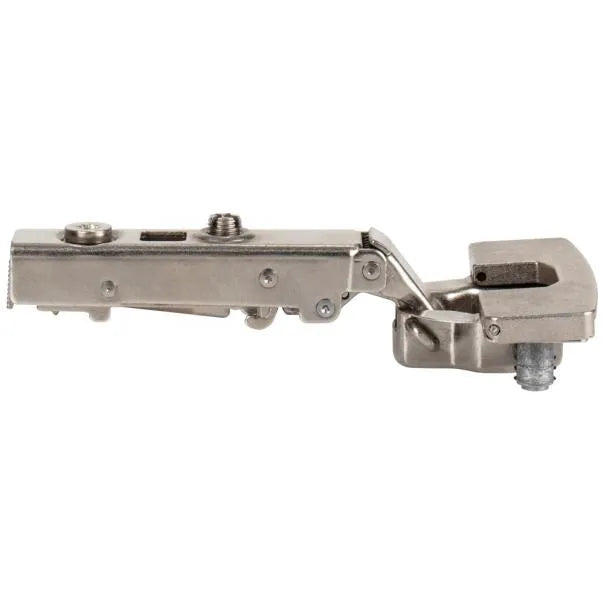

HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels

Name: HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Lever-Top Dowels
Brand: HARDWARE RESOURSE
SKU: 700.L110.00
Price: 5.83 USD
Availability: InStock

$5.83 USD

Sale Sold out

Quantity

HR Max = Quality backed by Lifetime warranty

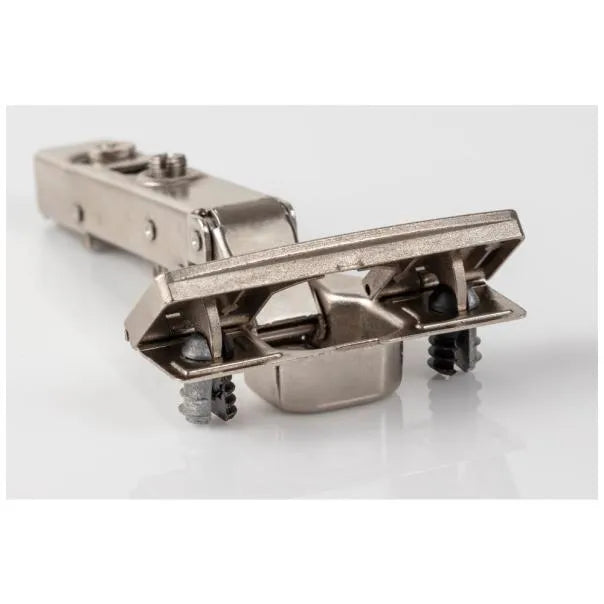

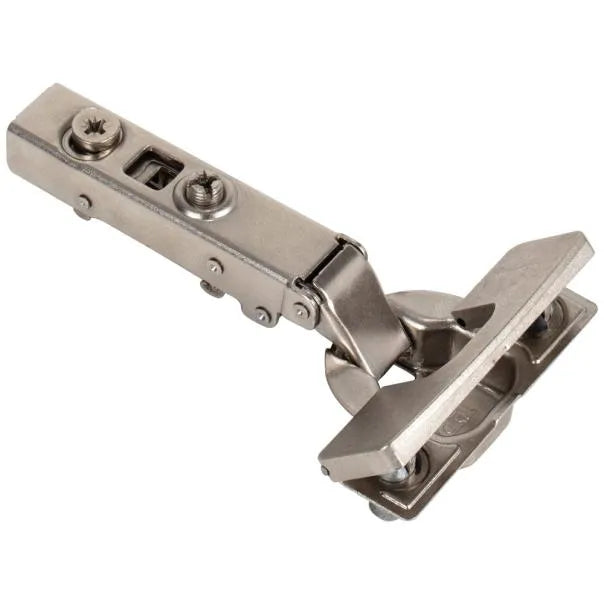

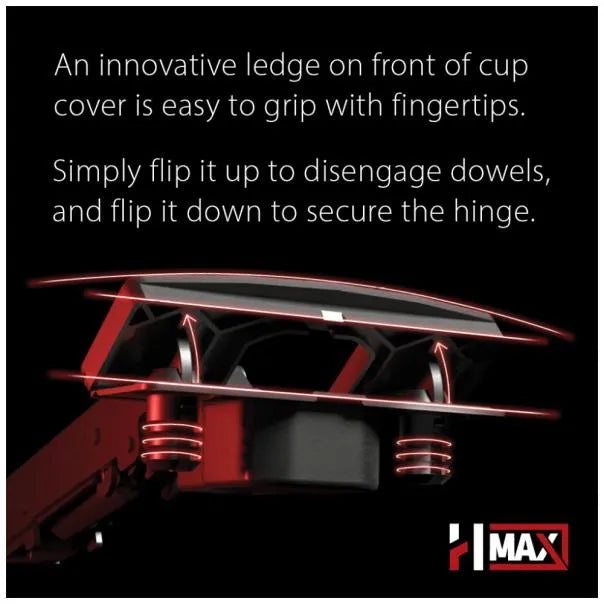

Lever-top provides toolless installation and removal

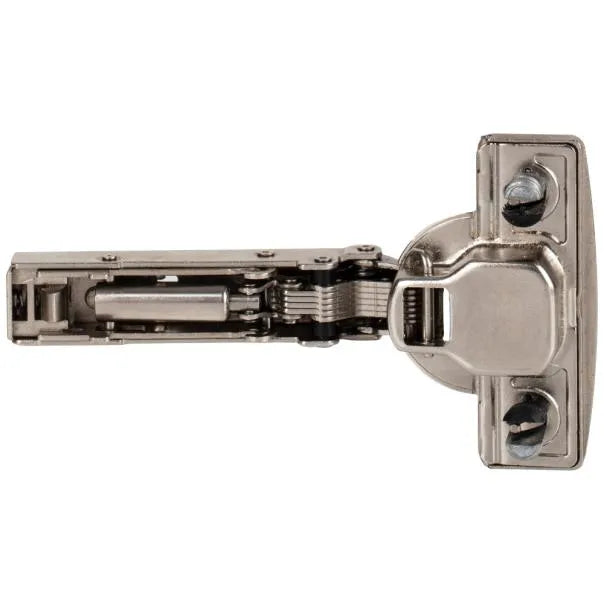

Heavy duty spring and patented linkage system
All metal concealed damper provides a life time of worry-free use
2-stop action
0 mm Crank

Item Number	700.L110.00
Closing	Soft-close
Cycles	100,000+
Hinge Cup Bore Depth	11.2 mm
Arm Type	Straight Arm
Hinge Type	European
Mount Centers	45 mm
Cabinet Type	Faceframe or Frameless
Pivot Type	Dual
ADA	No
Packaging Type	Small Package
Degree of Opening	110°
Overlay	Full
Hinge Crank Amount	0mm
Overlay Adjustment	+2 mm, -2 mm
Depth Adjustment	+3 mm, -2 mm
Adjustment Type	Cam
Sold By	Each
Brand	HR Max
Series	700 Series
Finish	Nickel
Overall Length	118 mm
Width	59 mm
Hinge Cup Diameter	35 mm
Hinge Dowels	Lever-Top
Material	Steel
Patent	US Patent Pending
Certification	Grade 2 ANSI/BHMA Certified to ANSI 100,000 Cycles
Mount Type	Lever-Top Dowels
Warranty Period	Limited Lifetime
