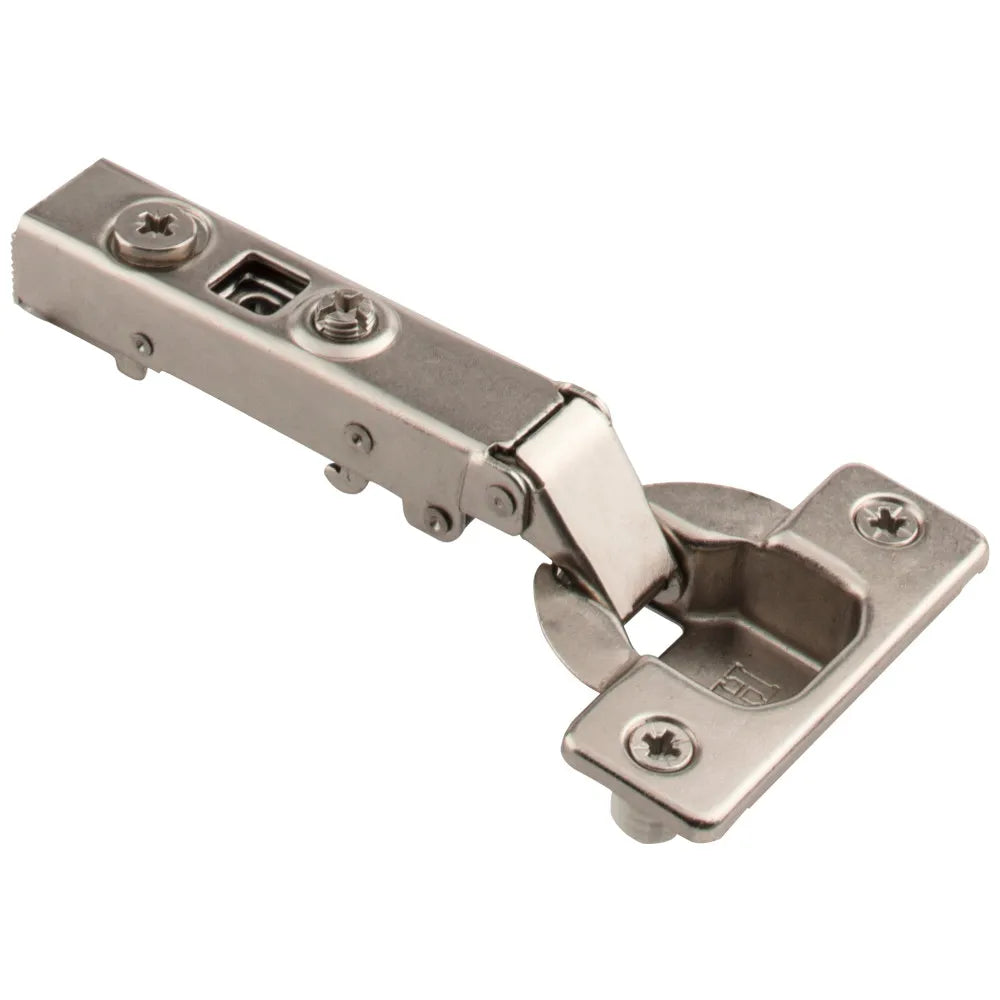

HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge with Press-in 8 mm Dowels

$5.38 USD
$5.38 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Heavy duty spring and patented linkage system

  • All metal concealed damper provides a life time of worry-free use

  • 2-stop action

  • Woodwork Institute Listed Product

  • 0 mm Crank

Details
Item Number 700.0181.25
Closing Soft-close
Cycles 100,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Straight Arm
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Full Overlay
Hinge Crank Amount 0 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 700 Series
Finish Polished Nickel
Overall Length 68 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Press-in
Material Steel
Patent 8,819,897 B2
Certification Grade 2 ANSI/BHMA Certified to 2X ANSI 100,000 Cycles, Woodwork Institute
Installation Press-in 8 mm Dowels
Mount Type Press-in
Warranty Period Limited Lifetime
