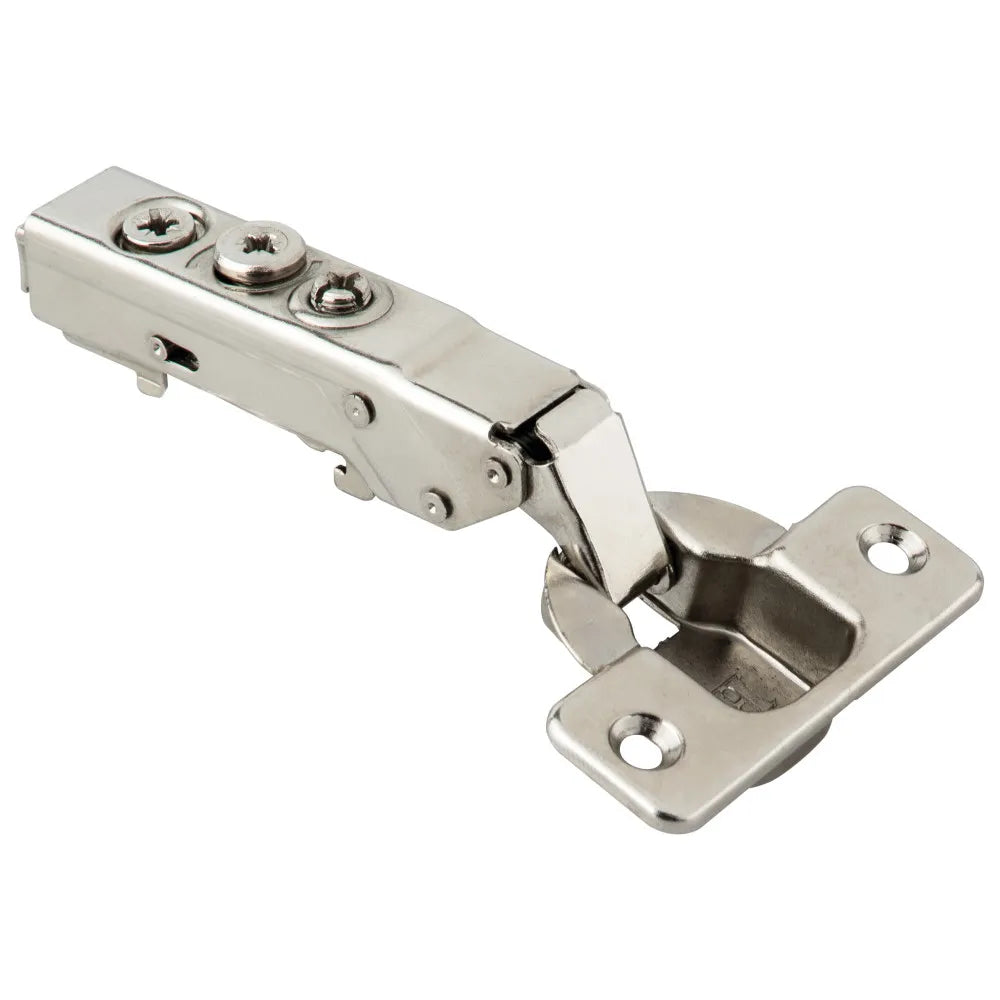

HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge without Dowels

HR MAX™ 110° Heavy Duty Full Overlay Cam Adjustable Soft-close Hinge without Dowels

$5.42 USD
$5.42 USD
Sale Sold out

  • HR Max = Quality backed by Lifetime warranty

  • Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door

  • Heavy duty spring and linkage system

  • Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles

  • 0 mm Crank

Details
Item Number 1750.0535.25
Closing Soft-close
Cycles 100,000+
Hinge Cup Bore Depth 11.2 mm
Arm Type Straight Arm
Hinge Type European
Mount Centers 45 mm
Cabinet Type Faceframe or Frameless
Pivot Type Dual
ADA No
Packaging Type Small Package
Degree of Opening 110°
Overlay Full Overlay
Hinge Crank Amount 0 mm
Overlay Adjustment +2 mm, -2 mm
Depth Adjustment +3 mm, -2 mm
Adjustment Type Cam
Sold By Each
Brand HR Max
Series 1750 Series
Finish Polished Nickel
Overall Length 72 mm
Hinge Cup Diameter 35 mm
Hinge Dowels Without (no dowels)
Material Steel
Patent US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2
Certification ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012
Installation No Dowels
Mount Type Screw
Warranty Period Limited Lifetime
