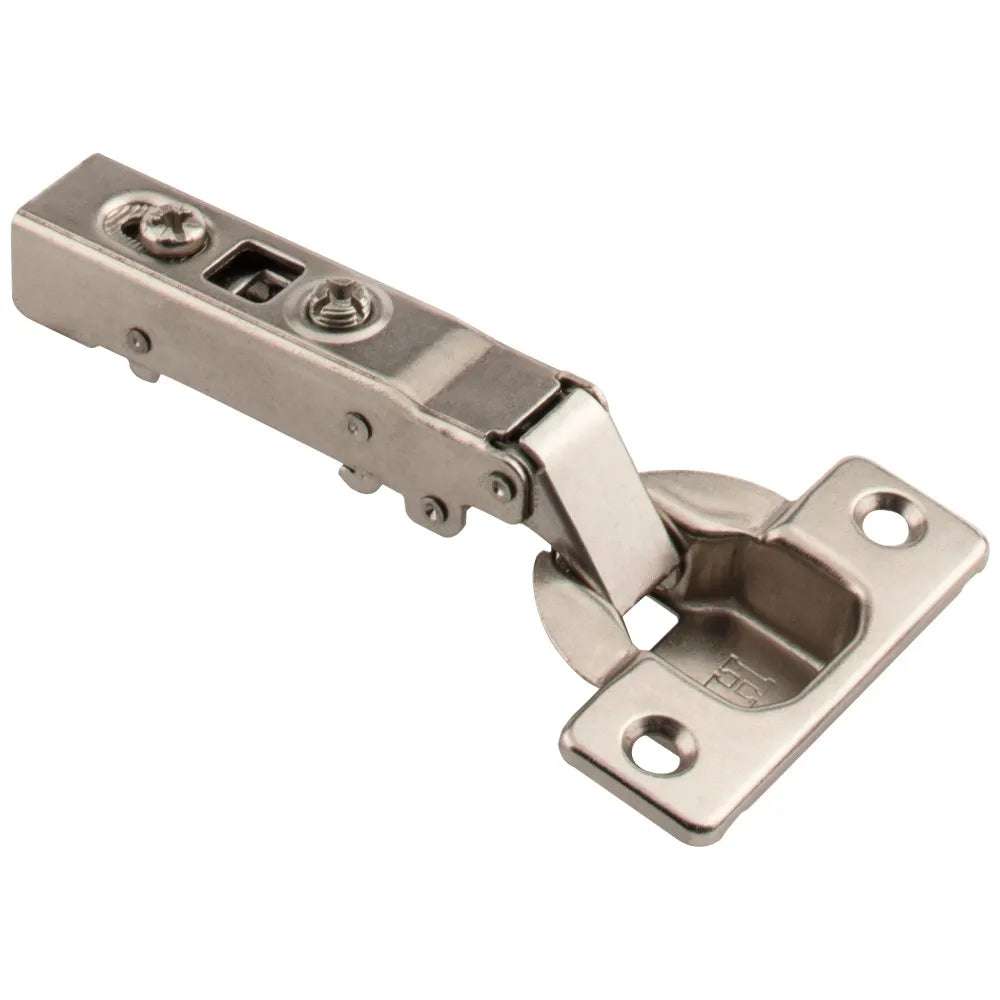

HR MAX™ 110° Heavy Duty Full Overlay Screw Adjustable Soft-close Hinge without Dowels
HR MAX™ 110° Heavy Duty Full Overlay Screw Adjustable Soft-close Hinge without Dowels
Regular price
$4.07 USD
Regular price
Sale price
$4.07 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-
Heavy duty spring and patented linkage system
-
All metal concealed damper provides a life time of worry-free use
-
2-stop action
-
0 mm Crank
| Item Number | 700.0534.25 |
|---|---|
| Closing | Soft-close |
| Cycles | 100,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Screw |
| Sold By | Each |
| Brand | HR Max |
| Series | 700 Series |
| Finish | Polished Nickel |
| Overall Length | 68 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | Grade 2 ANSI/BHMA Certified to 2X ANSI 100,000 Cycles |
| Installation | No Dowels |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
