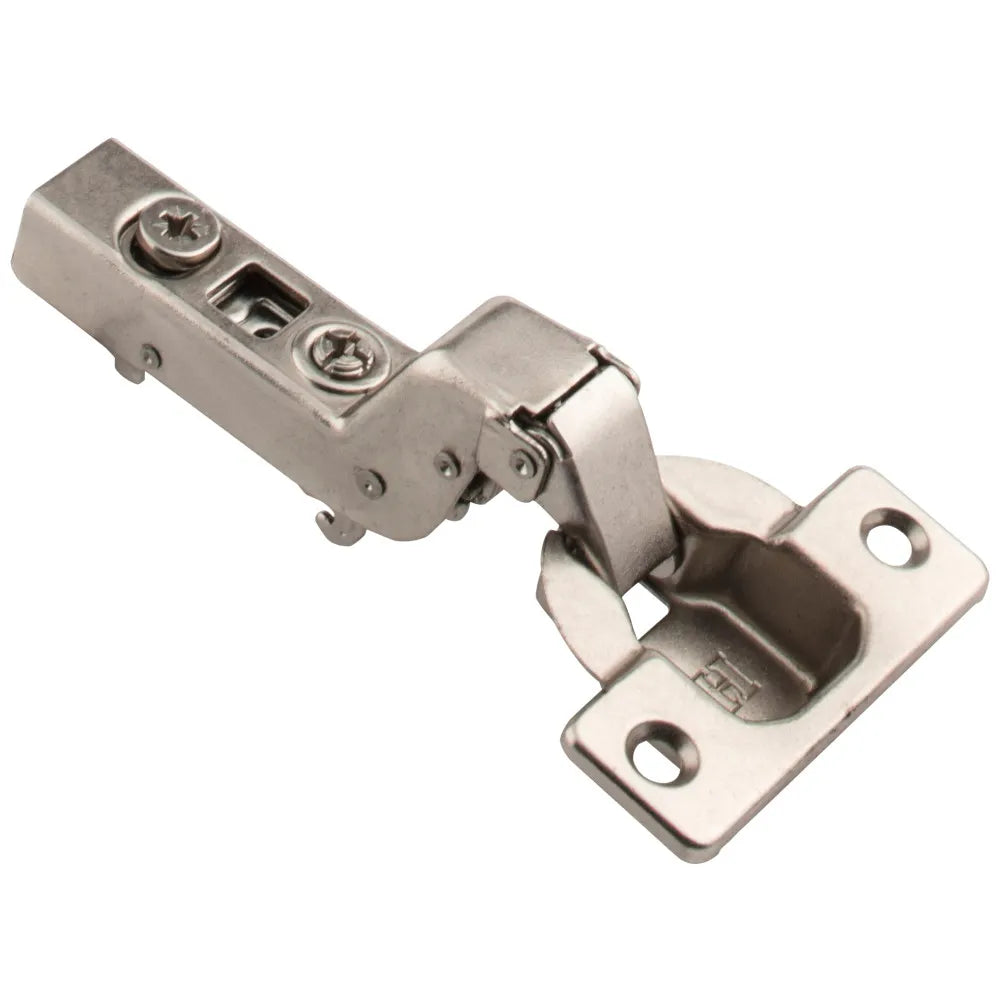

HR MAX™ 110° Heavy Duty Inset Cam Adjustable Soft-close Hinge without Dowels
HR MAX™ 110° Heavy Duty Inset Cam Adjustable Soft-close Hinge without Dowels
Regular price
$5.36 USD
Regular price
Sale price
$5.36 USD
Unit price
/
per
Couldn't load pickup availability
-
HR Max = Quality backed by Lifetime warranty
-
Heavy duty spring and patented linkage system
-
All metal concealed damper provides a life time of worry-free use
-
2-stop action
-
Woodwork Institute Listed Product
-
15 mm Crank
| Item Number | 700.0537.25 |
|---|---|
| Closing | Soft-close |
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Full Cranked |
| Hinge Type | European |
| Inset | Full |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Inset |
| Hinge Crank Amount | 15 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 700 Series |
| Finish | Polished Nickel |
| Overall Length | 67.5 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012, Woodwork Institute |
| Installation | No Dowels |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
